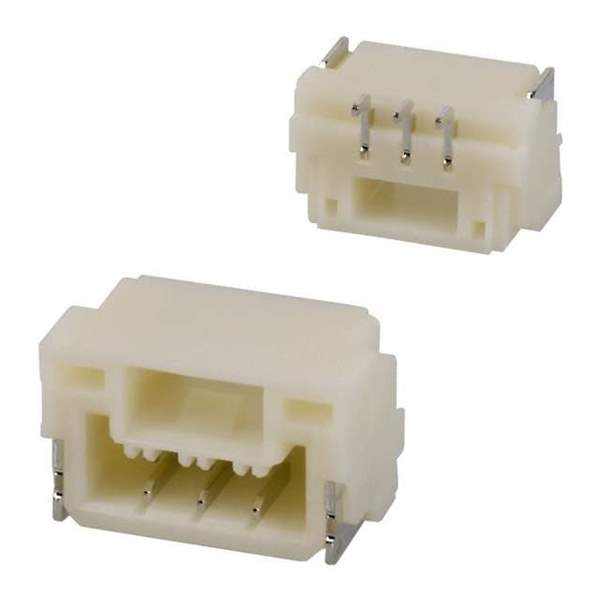

SM03B-GHS-TB(LF)(SN)

Part No SM03B-GHS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 3POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049"
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.167"
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA9T), Nylon 9T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806067-SM03B-GHS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM03B-GHS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 806067-SM03B-GHS-TB(LF)(SN) is a 3-position header connector with outer shroud contacts.

  • Style: Board to cable/wire
  • Packaging: Reel
  • Pitch: 0.049 inches
  • Voltage Rating: 50V
  • Contact Material: Phosphor Bronze
  • Current Rating: 1A
  • Temperature Range: -25°C to 85°C
  • Termination: Solder
  • Flammability Rating: UL94 V-0
  • Mated Stacking Height: 8.6mm
  • Insulation Material: Polyamide (PA9T), Nylon 9T
  • Shrouded: 4 Wall
  • Fastening Type: Locking Ramp
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 2,500
