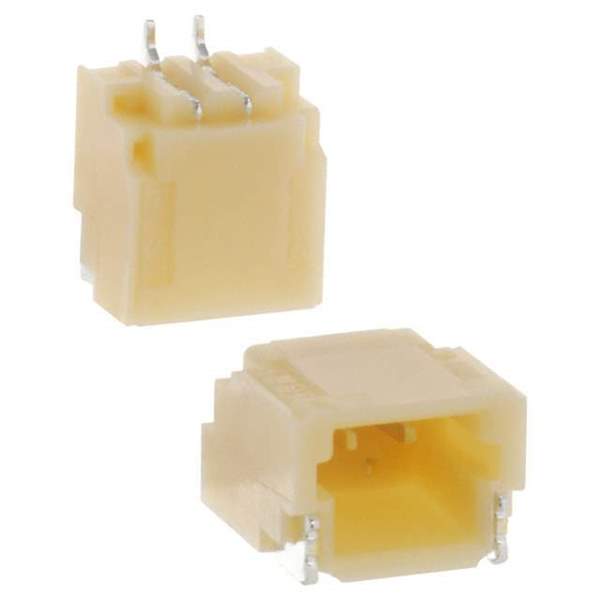

SM02B-SRSS-TB Real Image
Same model may have multiple batches, images only for reference.

SM02B-SRSS-TB

Part No SM02B-SRSS-TB
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 2POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features Connector Header Surface Mount, Right Angle 2 position 0.039" (1.00mm)
Manufacturer JST Sales America Inc.
Series SH/SR
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-1420-1, 455-1420-2, SM02BSRSSTB
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934038-SM02B-SRSS-TB
Ultra Librarian 3D Model Ultra Librarian SM02B-SRSS-TB CAD Model

Description

The JST Sales America Inc. SM02B-SRSS-TB is a high-quality connector header suitable for a wide range of applications.

  • Mounting Type: Surface Mount, Right Angle
  • Positions: 2
  • Pitch: 0.039" (1.00mm)
  • Operating Temperature: -25°C to 85°C
  • RoHS Compliant: Yes
