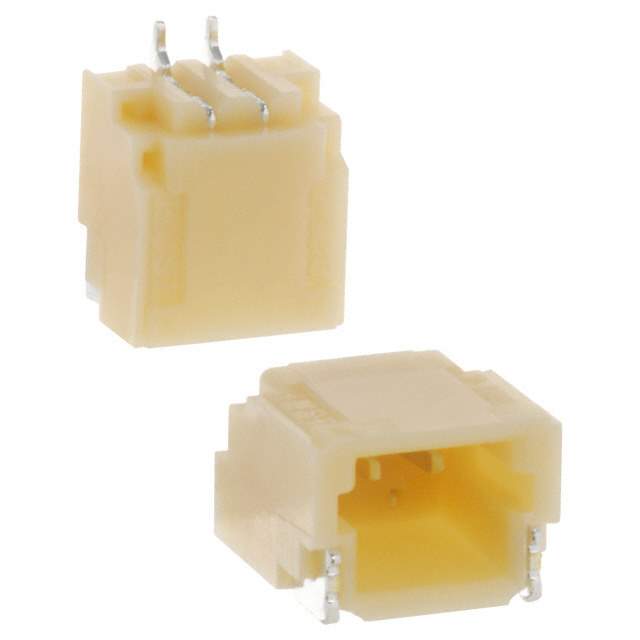

SM02B-SRSS-TB(LF)(SN) Real Image1 SM02B-SRSS-TB(LF)(SN) Real Image2
SM02B-SRSS-TB(LF)(SN) Real Image1 SM02B-SRSS-TB(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.

SM02B-SRSS-TB(LF)(SN)

Part No SM02B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Conn Shrouded Header (4 Sides) HDR 2 POS 1mm Solder RA SMD T/R / CONN HEADER SH 2POS SIDE 1MM TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.114" (2.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 2.95mm
Win Source Part Number 114326-SM02B-SRSS-TB(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SH
Introduction Date July 11, 2001
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SM02B-SRSS-TB(LF)(SN) CAD Model

Description

The SM02B-SRSS-TB(LF)(SN) is a 2-position header connector with male pins manufactured by JST Sales America Inc.

  • Design: Shrouded 4 wall
  • Insulation Material: Polyamide (PA) nylon
  • Contact Finish: Tin
  • Contact Shape: Square
  • Pitch Mating: 0.039 inches (1.00mm)
  • Voltage Rating: Up to 50V
  • Current Rating: Up to 0.7A
  • Mounting: Surface mountable
  • Mounting Style: Right angle
  • Temperature Range: -25°C to 85°C
  • Popularity: Popular connector with high demand in the market.
  • Applications: Commonly used in board-to-cable/wire applications.
