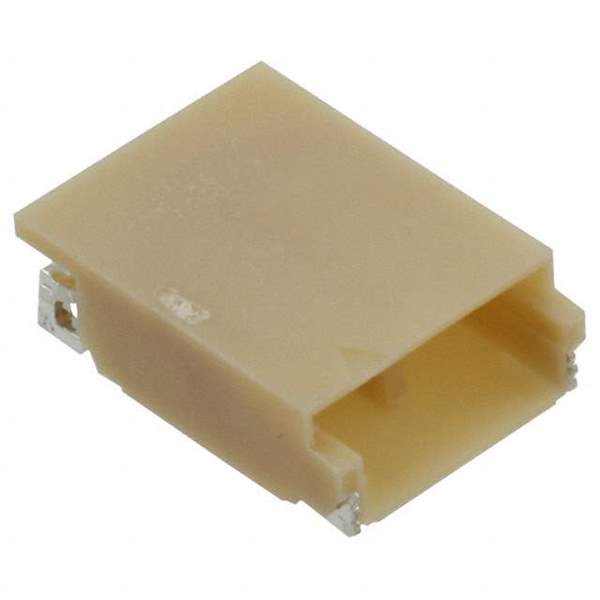

SM02B-BHSS-1-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM02B-BHSS-1-TB(LF)(SN)

Part No SM02B-BHSS-1-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER 3.5MM 2POS R/A SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series BHS
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.138" (3.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.126" (3.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyphthalamide (PPA)
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 1400V
Mated Stacking Heights 3.2mm
RoHS State Request Verification
Win Source Part Number 759202-SM02B-BHSS-1-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name SM02B
Introduction Date October 18, 2005
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SM02B-BHSS-1-TB(LF)(SN) CAD Model

Description

The 759202-SM02B-BHSS-1-TB(LF)(SN) is a 2-position male pin header connector manufactured by JST Sales America Inc.

  • Part of the: BHS series and is designed for board to cable/wire connections.
  • Features a pitch of: 0.138 inches (3.50mm).
  • Has a: surface mount, right angle mounting style.
  • Contact material: brass.
  • Voltage rating: 1400V.
  • Current rating: 1A.
  • The 759202-SM02B-BHSS-1-TB(LF)(SN) is a: durable and reliable choice for those looking to connect wires or cables to a circuit board.
