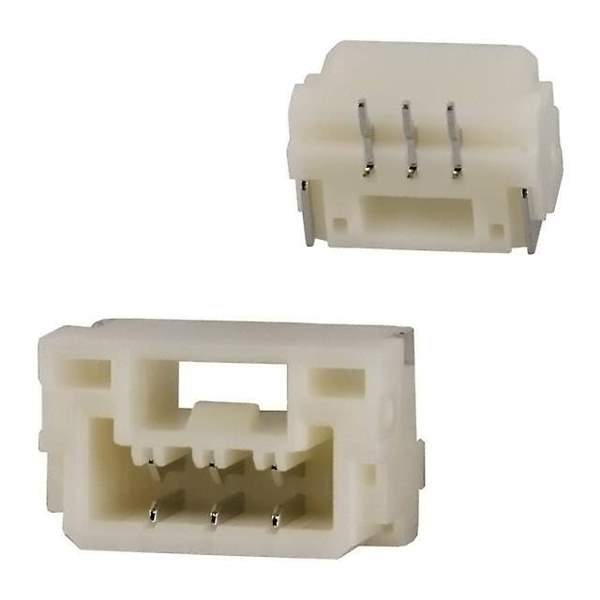

BM03B-GHS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM03B-GHS-TBT(LF)(SN)

Part No BM03B-GHS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog OEM Parts (A - B)
Description Conn Shrouded Header (4 Sides) HDR 3 POS 1.25mm Solder ST Top Entry SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Tin
Current Rating 1 A
Height 4.05 mm
Housing Color Natural
Housing Material Nylon
Lead Free Yes
Length 7 mm
Mount Surface Mount
Number of Contacts 3
Number of Positions 3
Number of Rows 1
Orientation Straight
Packaging Cut Tape
Pitch 1.25 mm
REACH SVHC No SVHC
RoHS Compliant
Termination Crimp, Solder
Voltage Rating 50 V
Width 4.25 mm
Win Source Part Number 1012109-BM03B-GHS-TBT(LF)(SN)
Categories OEM Parts(A-B)
Manufacturer JST Sales America Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian BM03B-GHS-TBT(LF)(SN) CAD Model

Description

The 1012109-BM03B-GHS-TBT(LF)(SN) is a 3-position straight orientation connector designed for crimp and solder terminations manufactured by JST Sales America Inc.

  • Positions: 3
  • Orientation: Straight
  • Termination: Crimp and Solder
  • Pitch: 1.25 mm
  • Voltage Rating: 50 V
  • Current Rating: 1 A
  • Contact Material: Bronze
  • Contact Plating: Tin
  • Housing Material: Nylon
  • Housing Color: Natural
  • Height: 4.05 mm
  • Width: 4.25 mm
  • Length: 7 mm
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Application: Consumer Electronics and Telecommunications
