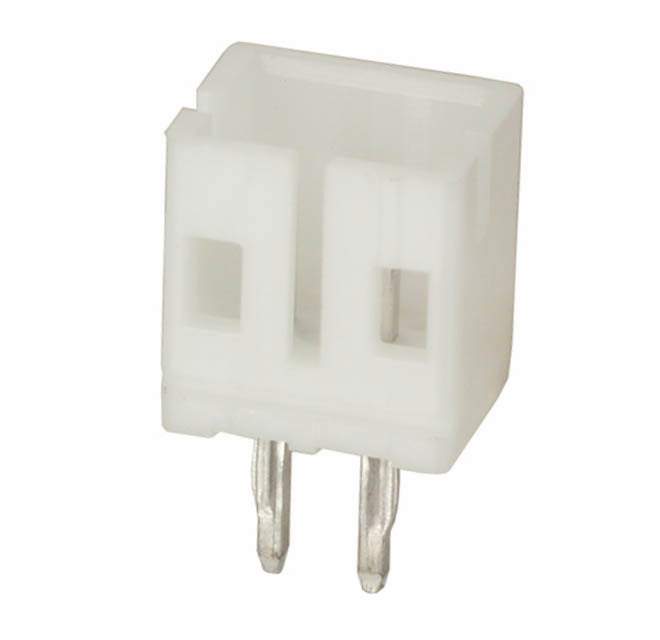

B2B-PH-K-S(LF)(SN)

Part No B2B-PH-K-S(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH TOP 2POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.333" (8.45mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 8mm
Win Source Part Number 079370-B2B-PH-K-S(LF)(SN)
Family Name PH
Introduction Date December 04, 2012
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian B2B-PH-K-S(LF)(SN) CAD Model

Description

Description

The B2B-PH-K-S(LF)(SN) offers superior performance for connecting multiple circuit networks. It ensures reliability with its state-of-the-art design and lead-free, halogen-free construction.

Features and Benefits

  • Efficient circuit connectivity
  • Safe, lead-free and halogen-free composition
  • Robust and secure connections
  • Streamlined design for space-saving

Applications/Projects

  • Networking of circuit systems
  • Advanced electronic devices
  • Telecommunication systems
  • Compact electronic module design

The B2B-PH-K-S(LF)(SN) is ideal for projects that demand precise circuit networking and dependable connectivity while supporting environmental sustainability.
