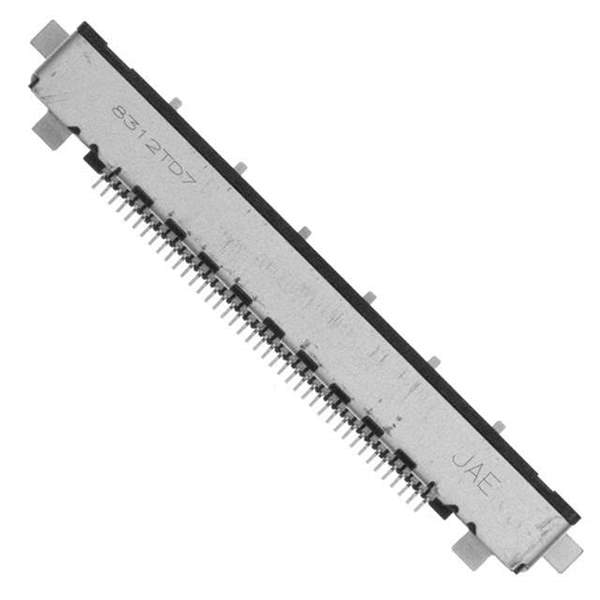

FI-RE41S-HF-R1500 Real Image
Same model may have multiple batches, images only for reference.

FI-RE41S-HF-R1500

Part No FI-RE41S-HF-R1500
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description Connector for Internal Serial Transmission | CONN RCPT 41P 0.02 GOLD SMD R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Packaging Reel
Connector Type Receptacle
Contact Type Female Blade Socket
Style Board to Cable/Wire
Number of Positions 41
Number of Positions Loaded All
Pitch - Mating 0.020" (0.50mm)
Number of Rows 1
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Insulation Height 0.148" (3.75mm)
Temperature Range - Operating -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Shielded, Solder Retention
Current Rating (Amps) 0.8A per Contact
Applications General Purpose, Medical
Insulation Material Plastic
Contact Material Copper Alloy
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759047-FI-RE41S-HF-R1500
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FI-RE41S-HF-R1500 CAD Model

Description

The JAE Electronics FI-RE41S-HF-R1500 is a 41-position shielded receptacle connector designed for board to cable/wire applications.

  • Mounting Style: Right Angle
  • Contact Type: Female Blade Socket
  • Contact Material: Copper Alloy
  • Pitch: 0.020 inches (0.50mm)
  • Flammability Rating: UL94 V-0
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1
  • Current Rating per Contact: 0.8A
  • Feature: Solder Retention
