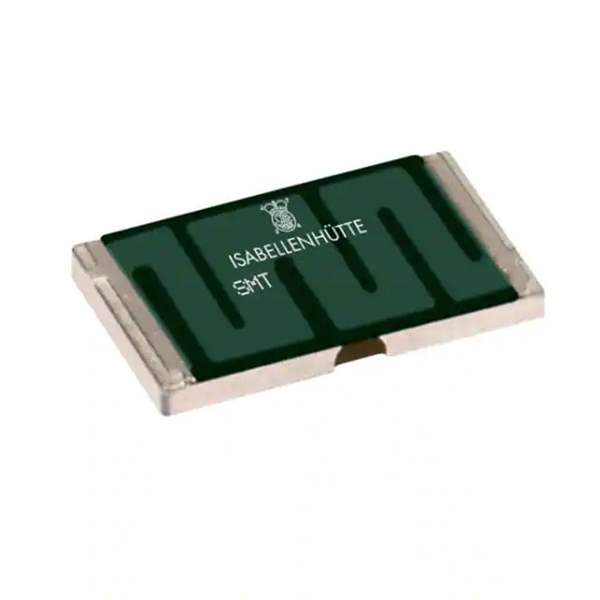

SMT-R330-1.0 Isabellen
Same model may have multiple batches, images only for reference.

SMT-R330-1.0

Part No SMT-R330-1.0
Manufacturer Isabellen
Catalog Chip Resistor - Surface Mount
Description RES 0.33 OHM 1% 7W 2817
Datasheet
SMT-R330-1.0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Isabellenhuette USA
Series SMT
Package Tape & Reel
Product Status Active
Resistance 330 mOhms
Tolerance ±1%
Power (Watts) 7W
Composition -
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 2817
Ratings -
Size / Dimension 0.280" L x 0.165" W (7.10mm x 4.20mm)
Height - Seated (Max) 0.039" (1.00mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375234-SMT-R330-1.0
Ultra Librarian 3D Model Ultra Librarian SMT-R330-1.0 CAD Model

Description

The SMT-R330-1.0 is a chip resistor that belongs to the SMT series manufactured by Isabellenhuette USA.

  • Series: SMT
  • Mounting Type: Surface Mount
  • Package Type: Nonstandard, 2817
  • Resistance: 330 mOhms
  • Tolerance: ±1%
  • Operating Temperature: -65°C to 170°C
  • Automotive Standard: AEC-Q200
  • Features: Current Sensing, Moisture Resistance, Pulse Withstand
  • Size: 0.280" L x 0.165" W (7.10mm x 4.20mm)
  • Seated Height: 0.039" (1.00mm)
