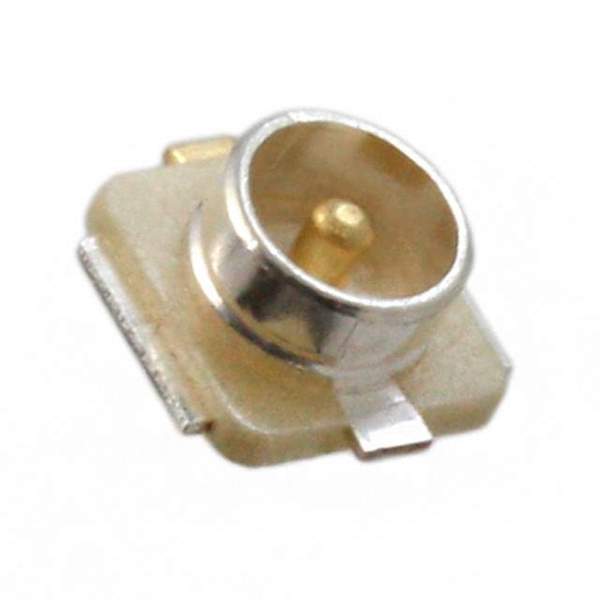

U.FL-R-SMT-1(10) Real Image
Same model may have multiple batches, images only for reference.

U.FL-R-SMT-1(10)

Part No U.FL-R-SMT-1(10)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description CONN UMC RCPT STR 50 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Style U.FL, Ultra Miniature Coaxial
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 6GHz
Housing Color Beige
Body Material Phosphor Bronze
Body Finish Silver
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C to 90°C
Center Contact Material Brass
Mating Cycles 30
Win Source Part Number 035549-U.FL-R-SMT-1(10)
Family Name U.FL
Introduction Date September 27, 2004
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian U.FL-R-SMT-1(10) CAD Model

Description

The Hirose Electric Co Ltd connector is a high-quality electronic component that is designed to meet the requirements of various applications.

  • Popularity: High
  • Supply and Demand Status: Limited
  • Connector Type: Receptacle, male pin
  • Fastening Type: Snap-on
  • Connector Style: U.FL, Ultra Miniature Coaxial
  • Voltage Rating: Not specified
  • Housing Color: Beige
  • Mounting: SMD (SMT)
  • Impedance: 50 Ohm
  • Body Material: Phosphor bronze
  • Insertion Loss: Not specified
  • Shield Termination: Solder
