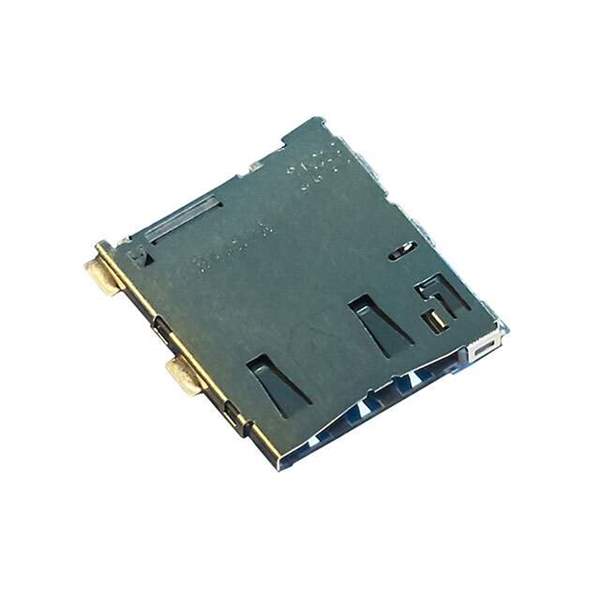

KP13B-SF-PEJ(800) Real Image
Same model may have multiple batches, images only for reference.

KP13B-SF-PEJ(800)

Part No KP13B-SF-PEJ(800)
Manufacturer Hirose Electric Co Ltd
Catalog Memory Connectors - PC Card Sockets
Datasheet
KP13B-SF-PEJ(800) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - PC Card Sockets
Mfr Hirose Electric Co Ltd
Series KP13B
Package Tape & Reel
Card Type NANO SIM
Number of Positions 7 (6 + 1)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Ejector Side Right
Mounting Type Surface Mount, Right Angle
Features Switch
Height Above Board 0.046" (1.18mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Base Product Number KP13
Other Names 26-KP13B-SF-PEJ(800)DKR,26-KP13B-SF-PEJ(800)TR,480-0387-0-00,26-KP13B-SF-PEJ(800)CT
Standard Package 1,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.8585
Win Source Part Number 1294066-KP13B-SF-PEJ(800)
Ultra Librarian 3D Model Ultra Librarian KP13B-SF-PEJ(800) CAD Model

Description

The KP13B-SF-PEJ(800) is a memory connector manufactured by Hirose Electric Co Ltd.

  • Series: KP13B
  • Positions: Seven positions (6 + 1)
  • Feature: Switch
  • Contact Finish: Gold Plated
  • Contact Finish Thickness: 2.00µin (0.051µm)
  • Mounting Type: Surface Mount, Right Angle Mounting Type
  • Mounting Feature: Normal, Standard - Top
  • Package: Tape and Reel
  • Standard Package: 1,500
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
