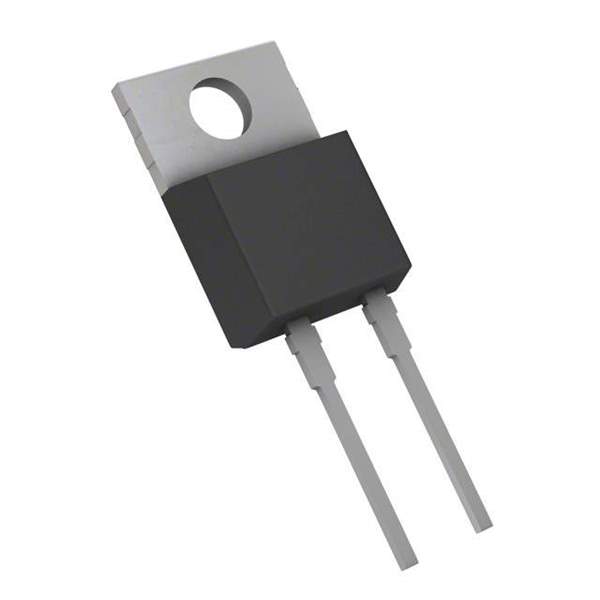

RHRP8120 Real Image
Same model may have multiple batches, images only for reference.

RHRP8120

Part No RHRP8120
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 8A TO220AC / Rectifier Diode Switching 1.2KV 8A 70ns 2-Pin(2+Tab) TO-220 Tube
Datasheet
RHRP8120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200V (1.2kV)
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 3.2V @ 8A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 70ns
Current - Reverse Leakage @ Vr 100μA @ 1200V
Mounting Through Hole
Case / Package TO-220-2L
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 092929-RHRP8120
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 800
Family Name RHRP8120
Introduction Date January 14, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian RHRP8120 CAD Model

Description

The Fairchild/ON Semiconductor is a discrete semiconductor product with a Win Source Part Number of 092929-RHRP8120.

  • Maximum DC Reverse Voltage: 1200V (1.2kV)
  • Average Rectified Current: 8A
  • Speed: Fast Recovery
  • Operating Temperature Range: -65°C to 175°C
  • Supply and Demand Status: Balanced
  • Quantity per Package: 800
