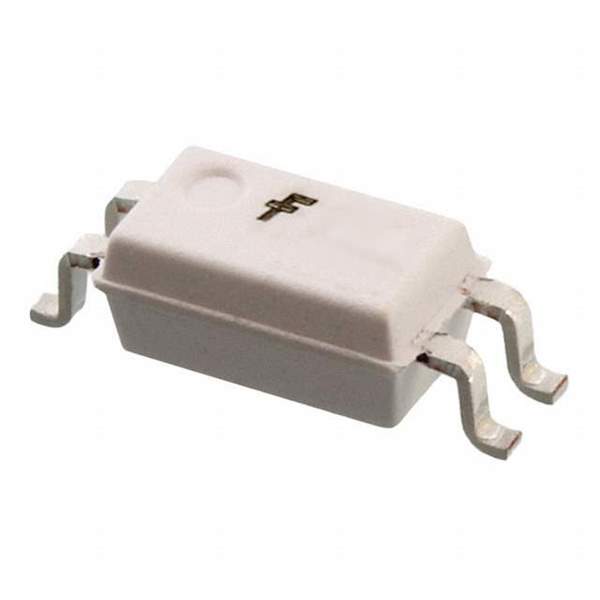

HMHA2801AR2 Real Image
Same model may have multiple batches, images only for reference.

HMHA2801AR2

Part No HMHA2801AR2
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANS 4-MINI-FLAT
Datasheet
HMHA2801AR2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 160% @ 5mA
Rise and Fall Time 3μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.3V (Max)
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 084154-HMHA2801AR2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian HMHA2801AR2 CAD Model

Description

The HMHA2801AR2 is an isolator transistor produced by Fairchild/ON Semiconductor. It features a minimum DC current transfer ratio of 80% at 5mA and a maximum DC current transfer ratio of 160% at 5mA. The device also has a Vce saturation (max) of 300mV, an isolation voltage of 3750Vrms, and a maximum output voltage of 80V. It can handle a continuous forward current of up to 50mA and is suitable for use in industrial applications. The supply and demand status for this product is balanced, and it comes in a reel of 2,500 units.
