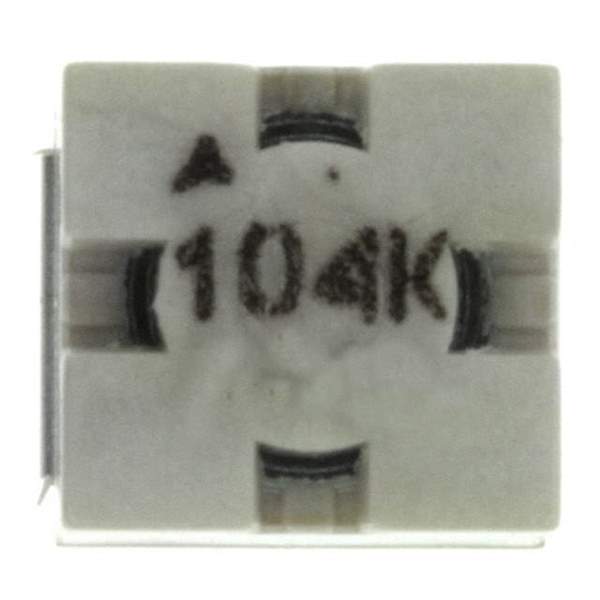

B82442A1104K Real Image
Same model may have multiple batches, images only for reference.

B82442A1104K

Part No B82442A1104K
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description Ind General Purpose Chip Wirewound 100uH 10% 796KHz 20Q-Factor Ferrite 250mA 2220 Blister T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 2220
Case Code (Imperial) 2220
Case / Package 5750
Composition Wirewound
Core Material Ferrite
Current Rating 250 mA
DC Current 250 mA
DC Resistance (DCR) 1.28 Ω
Depth 5.3 mm
Height 5 mm
Height - Seated (Max) 5.0038 mm
Inductance 100 µH
Inductance Tolerance 10 %
Lead Free Yes
Length 5.6 mm
Max DC Current 250 mA
Maximum Operating Temperature 150 °C
Military Standard Not
Mount Surface Mount
Number of Pins 2
Packaging Cut Tape (CT)
Q Factor 20
Radiation Hardening No
Ratings AEC-Q200
REACH SVHC No SVHC
Resistance 1.6 Ω
RoHS Compliant
Schedule B 8504500000
Self Resonant Frequency 6 MHz
Series Resistance 1.28 Ω
Shielding Unshielded
Termination SMD/SMT
Test Frequency 796 kHz
Tolerance 10 %
Type General Purpose
Weight 480.014126 mg
Width 5.0038 mm
Win Source Part Number 990287-B82442A1104K
Categories Fixed Inductors
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B82442A1104K CAD Model

Description

The EPCOS (TDK) B82442A1104K is a fixed inductor that comes in a 5750 package.

  • Inductance: 100μH
  • Tolerance: 10%
  • Mounting: Surface Mount
  • Maximum DC Current: 250mA
  • Self-Resonant Frequency: 6MHz
  • Q Factor: 20
  • Supply: Shortage
  • Popularity Rating: Low
