Introducing the DFLS240L-7-G by Diodes Incorporated

The DFLS240L-7-G is a high-performance Schottky diode designed and manufactured by the renowned semiconductor company Diodes Incorporated. This diode is engineered to provide superior efficiency and reliability for a wide range of applications. Its low forward voltage drop and high current capability make it an excellent choice for use in high-frequency rectification and freewheeling applications in power supplies and other power-switching applications.

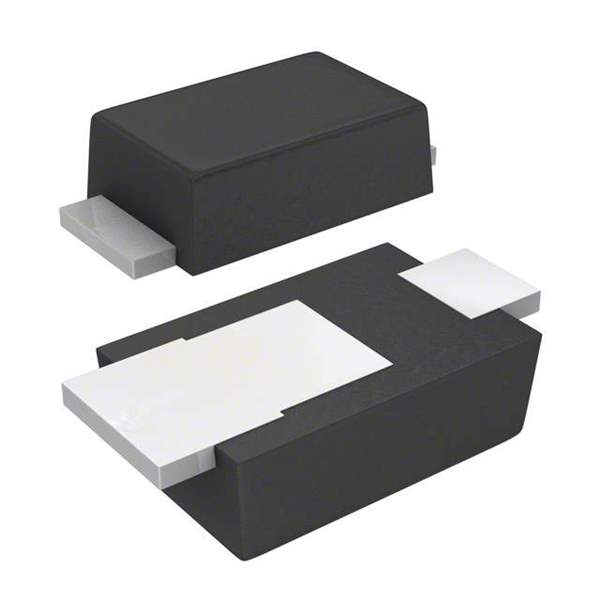

The DFLS240L-7-G is housed in a compact, surface-mount PowerDI™123 package, which not only saves valuable board space but also ensures robust thermal performance and low thermal resistance. This packaging is designed for optimal heat dissipation, allowing the diode to operate efficiently even under high current conditions.

Key features of the DFLS240L-7-G include:

• Low Forward Voltage: With its Schottky barrier technology, this diode offers a low forward voltage drop, typically just 0.24V at 2A, which means less power is wasted as heat and more is used in the circuit.
• High Current Capability: It can handle a high average rectified current of up to 2A, making it suitable for high-power applications.
• Low Power Loss: High efficiency is achieved thanks to its low power loss characteristics, making it ideal for energy-sensitive circuits.
• High Surge Capability: The device can withstand high surge currents, thereby offering better reliability during transient conditions.
• RoHS Compliant: The DFLS240L-7-G meets the directive 2011/65/EU, meaning it is free from hazardous substances like lead, making it environmentally friendly and safe for use in all types of electronic equipment.

Applications where the DFLS240L-7-G excels include:

• DC-DC Converters
• LED Lighting
• Power Supply OR-ing
• Battery Charging Circuits
• Reverse Battery Protection

With its combination of high efficiency, thermal performance, and reliability, the DFLS240L-7-G from Diodes Incorporated stands out as a top choice for designers looking to optimize their power management solutions. Whether it's for consumer electronics, automotive systems, or industrial equipment, this Schottky diode brings performance that can be counted on.
