The AP331AWG-7 is a high-performance voltage comparator designed and manufactured by Diodes Incorporated, a leading global provider and manufacturer of high-quality semiconductor products. This precision voltage comparator is engineered to offer a multitude of features that make it suitable for a variety of applications that require a reliable and efficient comparison of voltages.

Key Features

• Low Power Consumption: The AP331AWG-7 is designed to operate with minimal power consumption, making it an ideal choice for battery-powered and portable applications where power efficiency is critical.
• Wide Supply Voltage Range: It can operate over a wide supply voltage range from 2V to 36V, or ±1V to ±18V for dual supplies, providing flexibility in various system designs.
• Fast Response Time: With a typical response time of 1.3 microseconds, the AP331AWG-7 ensures rapid signal processing, which is essential for real-time applications.
• Open-Collector Output: The comparator features an open-collector output that allows for wired-OR connections and is capable of driving loads referenced to a different voltage.
• Offset Voltage: It offers a low input offset voltage, which enhances the accuracy of the comparison process.
• Temperature Range: The device is operational over an extended temperature range from -40°C to +125°C, suitable for industrial environments.

Applications

The versatility of the AP331AWG-7 makes it a perfect fit for a wide range of applications, including:

• Limit Comparators
• Analog-to-Digital Converters (ADCs)
• Zero-Crossing Detectors
• Window Comparators
• Voltage Monitoring
• Relay Drivers
• Motor Controllers

Product Specifications

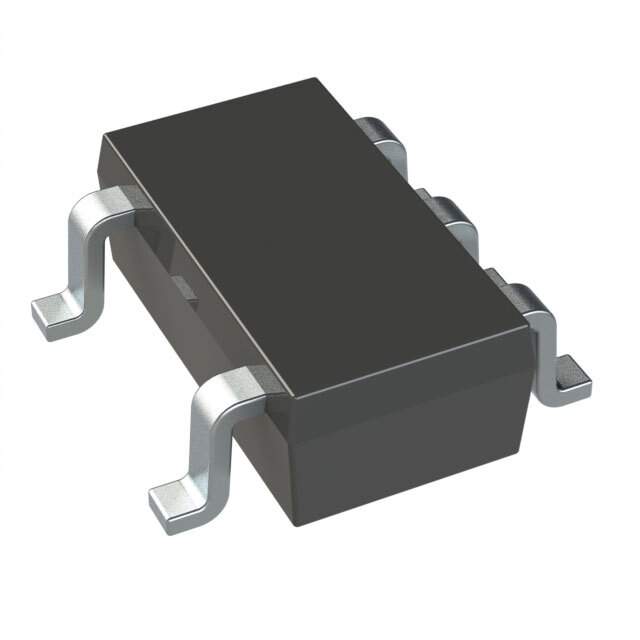

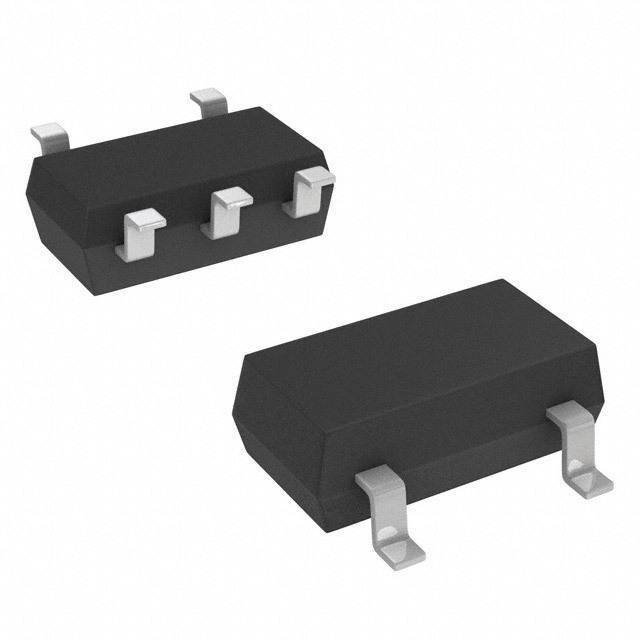

The AP331AWG-7 comes in a compact SOT-25 package, which is RoHS compliant and contributes to the reduction of space on printed circuit boards. Its small footprint along with its robust design ensures that it can be integrated into the most space-constrained applications without compromising performance.

For detailed specifications, reference designs, and additional information, customers are encouraged to visit the official Diodes Incorporated website or contact their local sales representative to ensure the AP331AWG-7 meets their specific design requirements.
