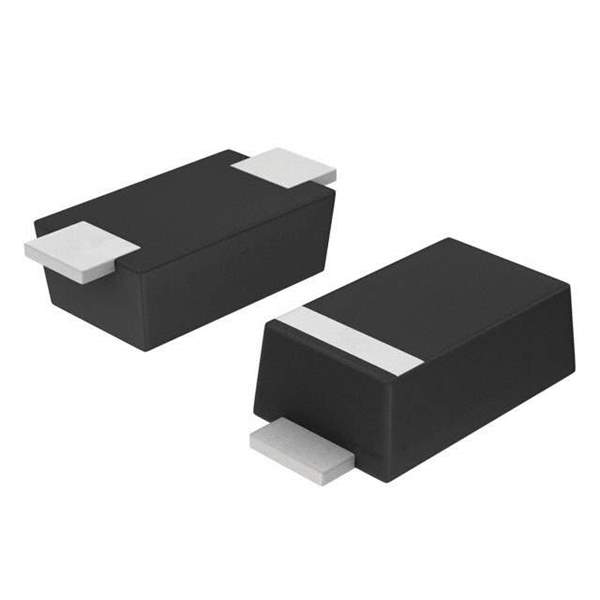

ATV02W120B-HF Real Image
Same model may have multiple batches, images only for reference.

ATV02W120B-HF

Part No ATV02W120B-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 12VWM 19.9VC SOD123 / 19.9V Clamp 10.05A Ipp Tvs Diode Surface Mount SOD-123F
Datasheet
ATV02W120B-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Comchip Technology
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 19.9V
Current - Peak Pulse (10/1000µs) 10.05A
Power - Peak Pulse 200W
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123F
Base Product Number ATV02W120
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1340189-ATV02W120B-HF
Ultra Librarian 3D Model Ultra Librarian ATV02W120B-HF CAD Model

Description

The Comchip Technology ATV02W120B-HF is a Zener diode designed for automotive applications.

  • Voltage - Reverse Standoff (Typ): 12V
  • Voltage - Breakdown (Min): 13.3V
  • Power - Peak Pulse: 200W
  • Current - Peak Pulse (10/1000µs): 10.05A
  • Package / Case: SOD-123F
  • Mounting Type: Surface Mount
  • Type: Zener
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Halogen Free: Yes
  • Standard Package: 3k
