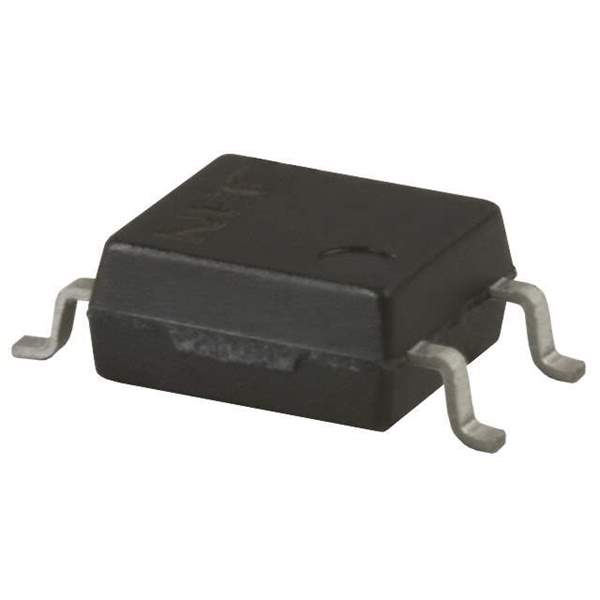

PS2705-1-F3-A Real Image
Same model may have multiple batches, images only for reference.

PS2705-1-F3-A

Part No PS2705-1-F3-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS 4SMD
Datasheet
PS2705-1-F3-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 300% @ 5mA
Rise and Fall Time 3μs, 5μs
Input Type AC, DC
Output Type Transistor
Maximum Output Voltage 40V
Channel Output Current 80mA
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SOP
Win Source Part Number 026884-PS2705-1-F3-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2705-1-F3-A CAD Model

Description

The CEL PS2705-1-F3-A is a single channel transistor output optocoupler.

  • Channels: Single
  • Output Type: Transistor
  • Minimum DC Current Transfer Ratio: 50% @ 5mA
  • Maximum DC Current Transfer Ratio: 300% @ 5mA
  • Isolation Voltage: 3750Vrms
  • Forward Voltage: 1.1V
  • Maximum Output Voltage: 40V
  • Channel Output Current: 80mA
  • Package: 4-SOP
  • Temperature Range: -55°C to 100°C
  • Rise Time: 3μs
  • Fall Time: 5μs
