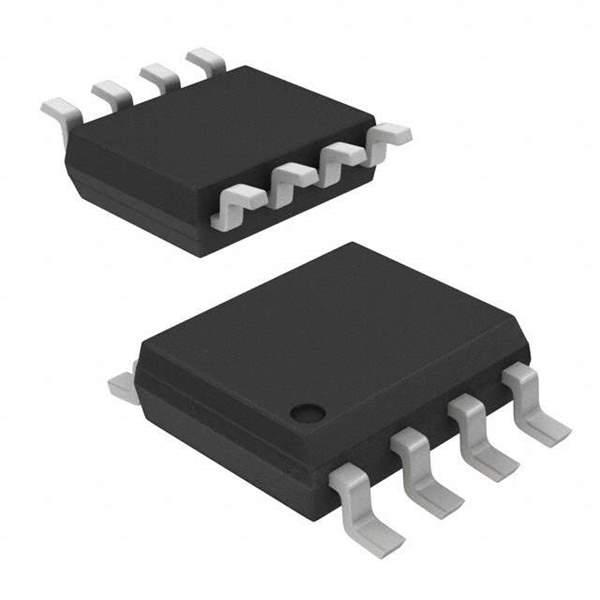

HCPL-063A-000E Real Image
Same model may have multiple batches, images only for reference.

HCPL-063A-000E

Part No HCPL-063A-000E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV 2CH OPEN COLL 8SO / Optocoupler Logic-Out Open Collector Dc-In 2-Ch 8-Pin Soic Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tube
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Minimum) 1kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Output Current per Channel 50mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Maximum) 100ns, 100ns
Rise / Fall Time (Typ) 42ns, 12ns
Voltage - Forward (Vf) (Typ) 1.3V
Current - DC Forward (If) (Maximum) 10mA
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 8-SOIC (0.154", 3.90mm Width)
Manufacturer Package 8-SO Tall
Win Source Part Number 775667-HCPL-063A-000E
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Family Name HCPL-063A
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Philippines, Singapore
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HCPL-063A-000E CAD Model

Description

The Broadcom Limited 775667-HCPL-063A-000E is an electronic component that is designed for use in isolator applications.

  • Packaging Type: Tube
  • Mounting: SMD
  • Operating Temperature Range: -40°C to 85°C
  • Data Rate: 10MBd
  • Voltage Isolation: 3750Vrms
  • Common Mode Transient Immunity: 1kV/μs
  • Manufacturer Package: 8-SO Tall
  • Output Current per Channel: 50mA
