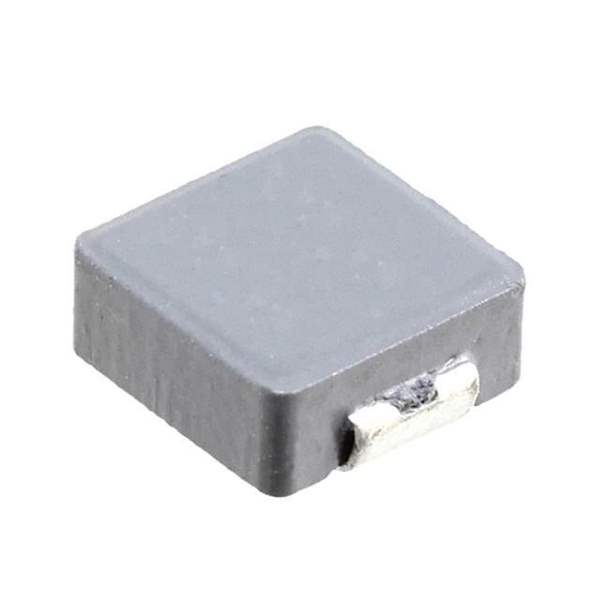

SRP7028A-100M Real Image
Same model may have multiple batches, images only for reference.

SRP7028A-100M

Part No SRP7028A-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 3.5A 85 MOHM SMD
Datasheet
SRP7028A-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series SRP7028A
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 6A
Shielding Shielded
DC Resistance (DCR) 85mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 14MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRP7028A
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
California Prop 65 Warning Information
Win Source Part Number 846626-SRP7028A-100M
Ultra Librarian 3D Model Ultra Librarian SRP7028A-100M CAD Model

Description

The SRP7028A-100M is a fixed inductor from Bourns Inc. Bold the product name (e.g., BAV99S,135 → SRP7028A-100M) and manufacturer (e.g., Nexperia USA Inc. → Bourns Inc.).

  • Series: SRP7028A
  • Core Type: Drum Core, Wirewound
  • Packaging: Tape and Reel
  • Mounting Type: Surface Mount
  • Size: 0.287" L x 0.260" W (7.30mm x 6.60mm)
  • Height: 0.118" (3.00mm)
  • Inductance: 10 µH
  • Tolerance: ±20%
  • Maximum DC Resistance (DCR): 85mOhm
  • Current Rating: 3.5A
  • Operating Temperature: -40°C to 150°C
  • AEC-Q200: Rated
  • Shielding: Shielded
  • Core Material: Carbonyl Powder
  • Status: Active
