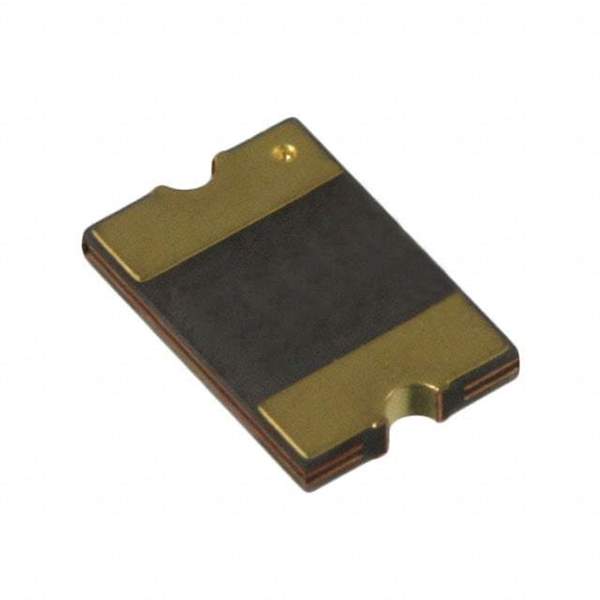

MF-MSMF050-2 Real Image
Same model may have multiple batches, images only for reference.

MF-MSMF050-2

Part No MF-MSMF050-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE .50A 15V 1812 / PTC Resettable Fuse 0.5A(hold) 1A(trip) 15V 100A 0.8W 0.15s 0.15Ohm SMD Solder Pad 1812 T/R Automotive
Datasheet
MF-MSMF050-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 15V
Current - Max 100A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 150ms
Resistance - Initial (Ri) (Min) 150 mOhm
Resistance - Post Trip (R1) (Max) 1 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 003391-MF-MSMF050-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Automotive, Safety
Family Name MF-MSMF
Introduction Date November 18, 2003
ECCN EAR99
Country of Origin Italy, Singapore
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MF-MSMF050-2 CAD Model

Description

Bourns Inc. presents its MF-MSMF050-2 polymeric PTC resettable fuse.

  • Maximum Voltage: 15V
  • Maximum Current: 100A
  • Current Hold: 500mA
  • Current Trip: 1A
  • Time to Trip: 150ms
  • Temperature Range: -40°C to 85°C
  • Resistance: 150 mOhm initial (Min)
  • Resistance: 1 Ohm post trip (Max)
  • Application: circuit protection applications
  • Supplied in: reel of 3,000 pcs
  • Rated: AEC-Q200 rated
  • Common Applications: automotive and safety applications
