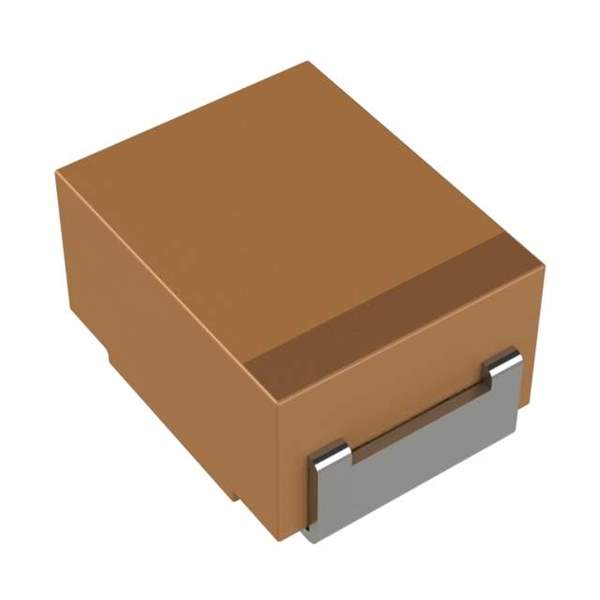

TPSB106K020R0500 Real Image
Same model may have multiple batches, images only for reference.

TPSB106K020R0500

Part No TPSB106K020R0500
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 10UF 10% 20V 1411 / 10 µF Molded Tantalum Capacitors 20 V 1411 (3528 Metric), 1210 500mOhm
Datasheet
TPSB106K020R0500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr KYOCERA AVX
Series TPS
Package Tape & Reel
Capacitance 10 µF
Tolerance ±10%
Voltage - Rated 20 V
Type Molded
ESR (Equivalent Series Resistance) 500mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1411 (3528 Metric), 1210
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.083" (2.10mm)
Manufacturer Size Code B
Features General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Names 478-9048-2,478-9048-6,TPSB106K020R0500-ND,478-9048-1
Standard Package 2,000
Win Source Part Number 1228673-TPSB106K020R0500
Ultra Librarian 3D Model Ultra Librarian TPSB106K020R0500 CAD Model

Description

The TPS series molded tantalum capacitors by Kyocera AVX are designed for general purpose use in electronic circuits.

  • Capacitance: 10 µF
  • Voltage Rating: 20 V
  • ESR: 500mOhm
  • Manufacturer Size Code: B
  • Package: tape and reel
  • Package/Case Size: 1411 (3528 Metric), 1210
  • Operating Temperature: -55°C to 125°C
