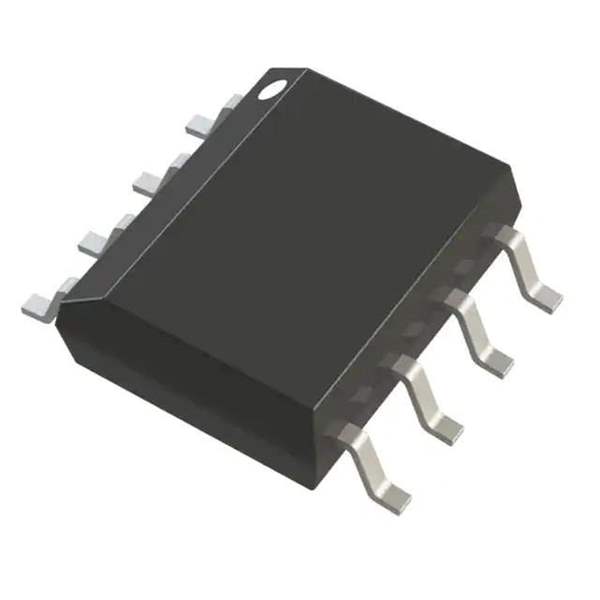

ADUM1280ARZ Digital Isolator by Analog Devices Inc.

The ADUM1280ARZ is a cutting-edge digital isolator manufactured by Analog Devices Inc., designed to provide superior isolation for a wide range of applications. This device employs Analog Devices' proprietary iCoupler® technology, which integrates high-speed CMOS and monolithic air core transformer technology. This innovative approach allows the ADUM1280ARZ to offer robust isolation between input and output with significant advantages over optocouplers and other conventional isolation methods.

Key Features

• Isolation Voltage: The device is rated for 2500 V RMS isolation voltage, providing a high degree of protection against high voltage transients and enabling safe data transfer between domains.
• Data Rate: It supports a data rate of up to 1 Mbps, making it suitable for many high-speed applications that require isolation.
• Channels: The ADUM1280ARZ features two independent isolation channels, which are configured as unidirectional from side 1 to side 2.
• Low Power Consumption: It operates with low power consumption, which is ideal for energy-sensitive applications.
• High-Temperature Operation: The device is capable of operating over a wide temperature range of -40°C to +125°C, ensuring reliable performance under extreme conditions.
• Regulatory Approvals: It meets the regulatory requirements, including UL, CSA, VDE, and CQC certifications, ensuring a high standard of safety and reliability.
• Package: The ADUM1280ARZ comes in a compact 8-lead SOIC package, which is suitable for space-constrained applications.

Applications

The versatility of the ADUM1280ARZ makes it ideal for a variety of applications, such as:

• Industrial automation and control systems
• Isolated SPI interface
• Isolated RS-232/RS-422/RS-485 interfaces
• Medical equipment with stringent isolation requirements
• Power supply control and monitoring

With its robust design and reliable isolation capabilities, the ADUM1280ARZ from Analog Devices Inc. is a top choice for designers seeking a high-performance digital isolator that can withstand the demands of challenging electrical environments.
