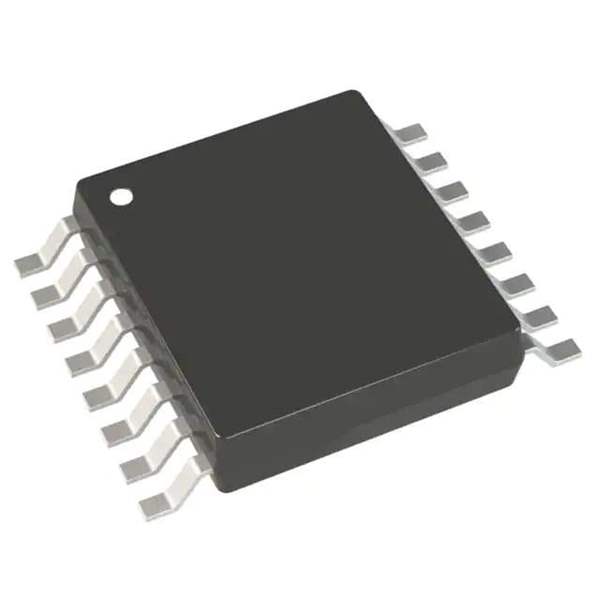

The ADG5436FBRUZ is a robust, high-performance analog switch manufactured by Analog Devices Inc., a leader in the semiconductor industry. This component is designed to deliver exceptional signal integrity and reliability for a wide range of applications, including data acquisition systems, communication systems, and industrial automation.

Key Features:

• Wide Voltage Range: The device operates with a dual supply voltage range of ±9 V to ±22 V or a single supply range of 9 V to 40 V, providing designers with flexibility in various system voltage requirements.
• Dual SPDT Configuration: The ADG5436FBRUZ features a dual single-pole, double-throw (SPDT) switch configuration, which allows for the routing of signals from common input/output paths.
• Low On Resistance: With an on resistance typically around 4.5 Ω, this switch ensures minimal signal attenuation, making it suitable for high-frequency signal switching.
• Enhanced ESD Protection: The device is equipped with robust electrostatic discharge (ESD) protection, ensuring durability and longevity in harsh environments.
• Fault Protection: With an extended fault protection range of ±55 V for VSS and VDD, the ADG5436FBRUZ is capable of withstanding overvoltage conditions, which is critical in industrial applications.
• Low Power Consumption: The switch's low power consumption makes it an ideal choice for portable and battery-powered applications.

Applications:

The ADG5436FBRUZ is versatile and can be used in a variety of applications, including:

• Automated Test Equipment (ATE)
• Data Acquisition Systems
• Sample and Hold Systems
• Communication Systems
• Analog and Digital Signal Routing

Engineered for precision and performance, the ADG5436FBRUZ switch from Analog Devices Inc. is a reliable choice for designers looking to enhance their system's signal routing capabilities with minimal signal loss and robust protection features.
