Overview

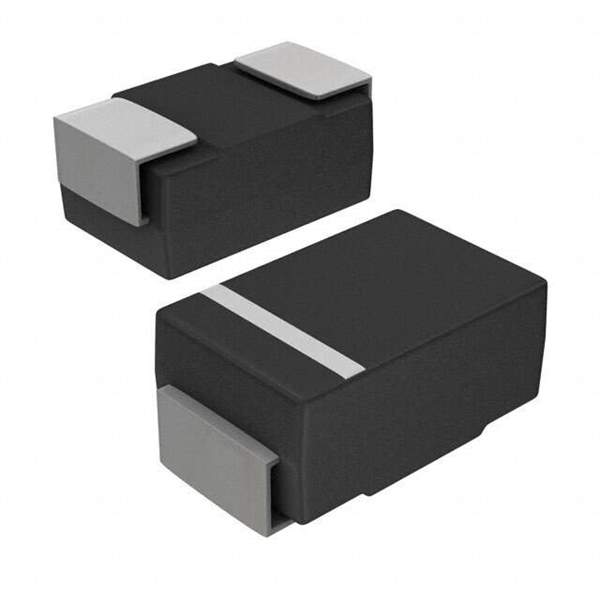

The SMAJ5.0A-AT/TR13 from Yageo is a unidirectional transient voltage suppressor (TVS) diode in the SMA (DO-214AC) surface-mount package. Devices in the SMAJ5.0A family are designed to protect sensitive electronics from electrostatic discharge (ESD), electrical fast transients, and surge events such as IEC or lightning-induced pulses on low-voltage lines. With a working voltage in the 5 V range and fast response to transients, this device is typically used on DC rails and I/O lines in compact boards where space and robust surge protection are both important. Supplied on tape and reel (TR13), it is optimized for automated SMT assembly in high-volume production.

Applications

• Protection of 5 V DC power rails in consumer and computing equipment
• Surge and ESD protection for microcontroller and logic I/O pins
• Interface and communication line protection in industrial control systems
• Transient suppression on automotive infotainment and telematics modules (low-voltage domains)
• Overvoltage protection for USB and other low-voltage data ports
• General-purpose surge protection in SMPS secondary-side and auxiliary circuits

Alternatives & Replacement

Depending on stock levels, lifecycle status, or specific design requirements (such as clamping voltage, peak pulse power, or package), it may be necessary to consider alternative TVS diodes with comparable performance.

Recommended alternatives:

• Littelfuse Inc. SMF6.5A-T13 – unidirectional TVS in a compact SMF package (redesign likely required).
• Toshiba Semiconductor and Storage DF2B6M4CT,L3F – TVS/ESD protection device for high-speed lines (layout changes expected).
• onsemi ESDM1051MX4T5G – low-capacitance ESD protection array for data interfaces.
• Nexperia USA Inc. PESD2IVN27-UX – dual-line ESD protection diode.
• onsemi ESD9X5.0ST5G – 5 V-rated ESD protection diode in a very small SMD package.
• onsemi MMBZ5V6ALT1G – dual TVS/zenertype device for low-voltage line protection.

Engineering note: When selecting a replacement, carefully verify the peak pulse power rating, stand-off and clamping voltages, polarity (uni/bi-directional), capacitance (for data lines), and especially package footprint and pin orientation. Even with similar electrical parameters, mechanical incompatibility can require PCB layout changes or a broader redesign.
