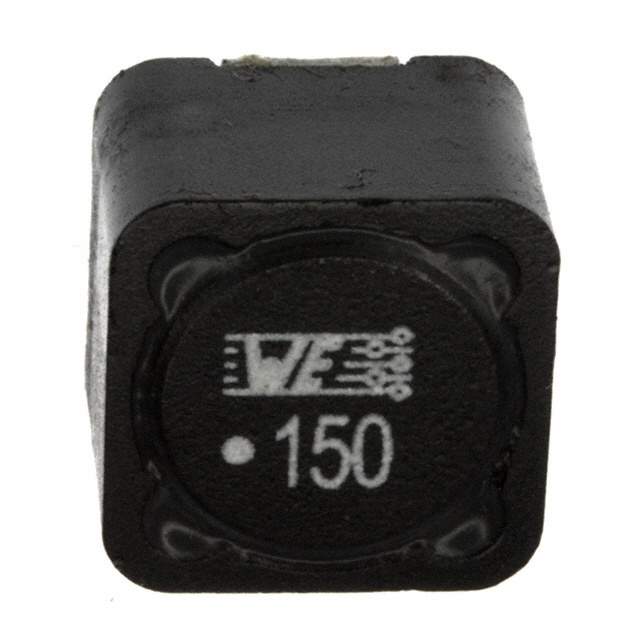

7447709150 Real Image 7447709150 Real Image
7447709150 Real Image 7447709150 Real Image
Same model may have multiple batches, images only for reference.

7447709150

Part No 7447709150
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 6.5A 26 MOHM SMD
Datasheet
7447709150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 6.5 A
Current - Saturation (Isat) 8A
Shielding Shielded
DC Resistance (DCR) 26mOhm Max
Frequency - Self Resonant 17MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857531-7447709150
Ultra Librarian 3D Model Ultra Librarian 7447709150 CAD Model

Description

The WE-PD series from Wurth Electronics Inc is a drum core, wirewound inductor with a shielded package.

  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Inductance: 15 μH
  • Mounting Type: Surface Mount
  • Height: 0.394" (10.00mm) max seated
  • Tolerance: ±20%
  • DC Resistance (DCR): 26mOhm max
  • Core Material: Ferrite
  • Self-Resonant Frequency: 17MHz
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 6.5A
