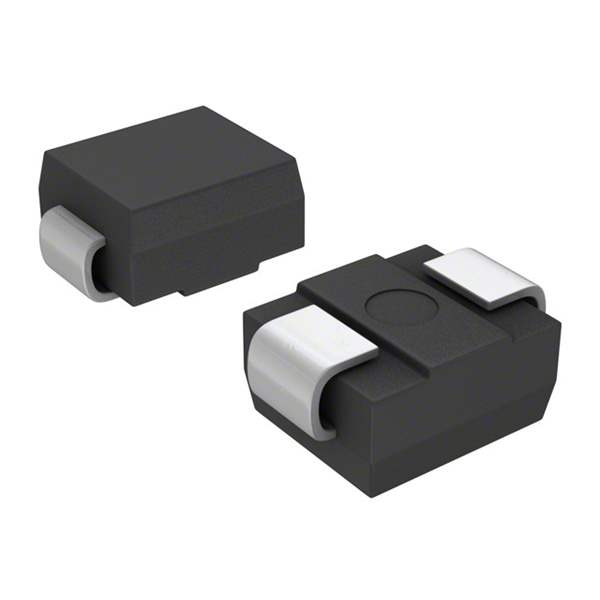

VS-10BQ060-M3/5BT
Same model may have multiple batches, images only for reference.

VS-10BQ060-M3/5BT

Part No VS-10BQ060-M3/5BT
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 1A SMB
Datasheet
VS-10BQ060-M3/5BT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 51 Weeks
Features Diode Schottky 60 V 1A Surface Mount DO-214AA (SMB)
Manufacturer Vishay
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package DO-214AA, SMB
Case / Package DO-214AA (SMB)
Family Name 10BQ060
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 112-VS-10BQ060-M3/5BTTR, VS-10BQ060-M3/5BT-ND, 112-VS-10BQ060-M3/5BTCT, VS10BQ060M35BT, 112-VS-10BQ060-M3/5BTDKR
Quantity per package 3200
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902864-VS-10BQ060-M3/5BT
Ultra Librarian 3D Model Ultra Librarian VS-10BQ060-M3/5BT CAD Model

Description

The Vishay 902864-VS-10BQ060-M3/5BT is a fast recovery Schottky diode that is ideal for surface mount applications.

  • Maximum Reverse Voltage: 60 V
  • Forward Current: 1 A
  • Forward Voltage Drop: low
  • Recovery Time: less than 500ns
  • Package: DO-214AA (SMB)
  • Supplied On: reel
  • Family Name: 10BQ060
  • Product Type: discrete semiconductor
