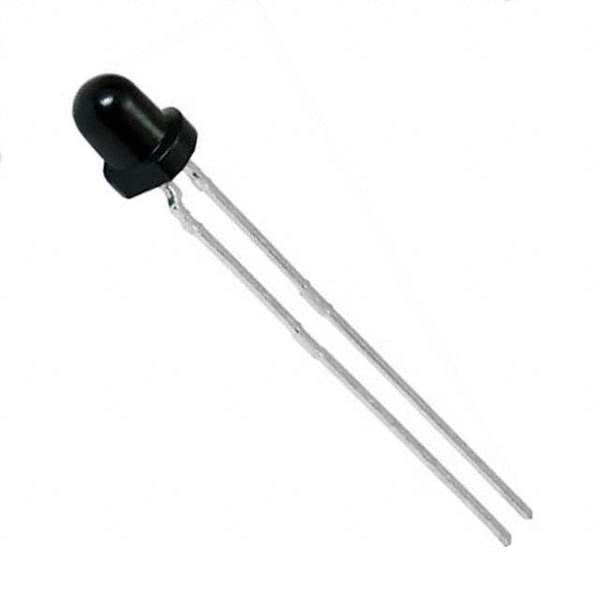

TEFD4300F Real Image
Same model may have multiple batches, images only for reference.

TEFD4300F

Part No TEFD4300F
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description Silicon PIN Photodiode
Datasheet
TEFD4300F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Bulk
Wavelength 950nm
Spectral Range 750nm ~ 1050nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Maximum) 10V
Current - Dark (Typ) 150pA
Viewing Angle 40°
Operating Temperature Range -40°C ~ 100°C
Mounting Style Through Hole
Package Radial
Win Source Part Number 1266713-TEFD4300F
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TEFD4300F CAD Model

Description

The TEFD4300F is a PIN diode manufactured by Vishay Semiconductor Opto Division.

  • Applications: Sensors and Transducers
  • Package: Radial
  • Operating Temperature: -40°C to 100°C
  • Response Time: 100ns
  • Viewing Angle: 40°
  • Wavelength: 950nm
  • Spectral Range: 750nm to 1050nm
  • Current-Dark (typ): 150pA
  • Voltage-DC Reverse (Vr) (maximum): 10V
  • Supply and Demand Status: Limited
