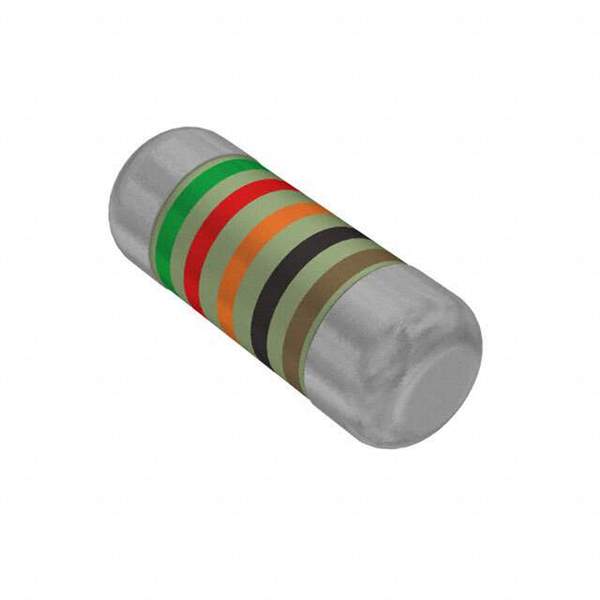

SMM02040C5230FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C5230FB300

Part No SMM02040C5230FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 523 OHM 1% 1/4W MELF 0204 / 523 Ohms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02040C5230FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series SMM0204
Package Tape & Reel (TR)
Resistance 523 Ohms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case MELF, 0204
Supplier Device Package Mini MELF
Ratings AEC-Q200
Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Standard Package 3,000
Win Source Part Number 1117865-SMM02040C5230FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C5230FB300 CAD Model

Description

The Vishay SMM0204 chip resistor is a surface mount electronic component. It is manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Resistance: 523 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Features: Anti-Sulfur, Automotive AEC-Q200 Rated, Pulse Withstanding
  • Power Rating: 0.25W (1/4W)
  • Package/Case: MELF, 0204
  • Packaging: Tape and Reel
  • Temperature Range: -55°C to 125°C
