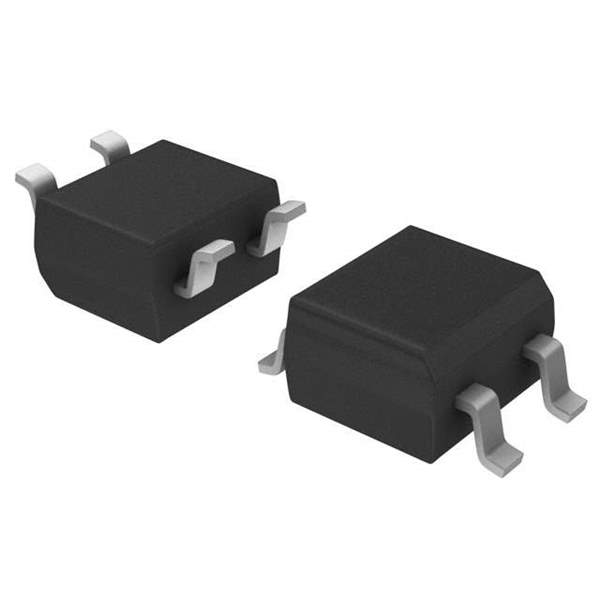

MB6S-E3/45 Real Image
Same model may have multiple batches, images only for reference.

MB6S-E3/45

Part No MB6S-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Miniature Glass Passivated Fast Recovery Surface Mount Bridge Rectifier
Datasheet
MB6S-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Maximum) @ If 1V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 600V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package TO-269AA, 4-BESOP
Manufacturer Package TO-269AA (MBS)
Win Source Part Number 1215703-MB6S-E3/45
Manufacturer Homepage www.vishay.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MB6S-E3/45 CAD Model

Description

The MB6S-E3/45 is a single-phase diode component that is manufactured by Vishay Semiconductor Diodes Division. It comes in a TO-269AA package with 4-BESOP mounting and has a standard technology.

  • Component Type: Single-Phase Diode
  • Manufacturer: Vishay Semiconductor Diodes Division
  • Package: TO-269AA
  • Mounting: 4-BESOP
  • Technology: Standard
  • Average Rectified Current: 500mA
  • Reverse Leakage Current: 5μA @ 600V
  • Category: Discrete Semiconductor Products
  • Popularity: High
