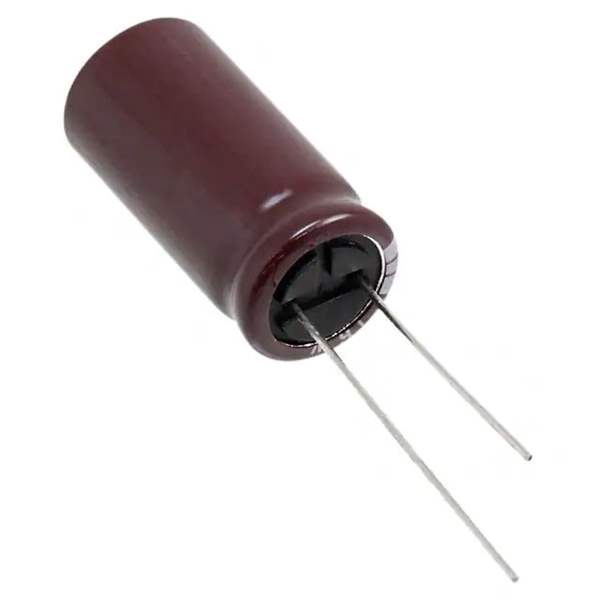

EKYB160ELL332MK25S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKYB160ELL332MK25S

Part No EKYB160ELL332MK25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 3300UF 20% 16V RADIAL / 3300 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KYB
Package Bulk
Product Status Active
Capacitance 3300 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.8975 A @ 120 Hz
Ripple Current @ High Frequency 2.53 A @ 100 kHz
Impedance 24 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.043" (26.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358245-EKYB160ELL332MK25S
Ultra Librarian 3D Model Ultra Librarian EKYB160ELL332MK25S CAD Model

Description

The 1358245-EKYB160ELL332MK25S is an aluminum electrolytic capacitor from United Chemi-Con's KYB series.

  • Capacitance: 3300 μF
  • Voltage Rating: 16 V
  • Temperature Range: -40°C to 105°C
  • Application: General-Purpose
  • Ripple Current (Low Frequency): 1.8975 A @ 120 Hz
  • Ripple Current (High Frequency): 2.53 A @ 100 kHz
  • Package: Radial, Can
  • Diameter: 0.492 inches (12.50 mm)
  • Height (Max): 1.043 inches (26.50 mm)
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.197 inches (5.00 mm)
  • Lifetime: 10,000 hours @ 105°C
  • Polarization: Polarized
  • Impedance: 24 mOhms
  • Product Status: Active
  • REACH: Unaffected
