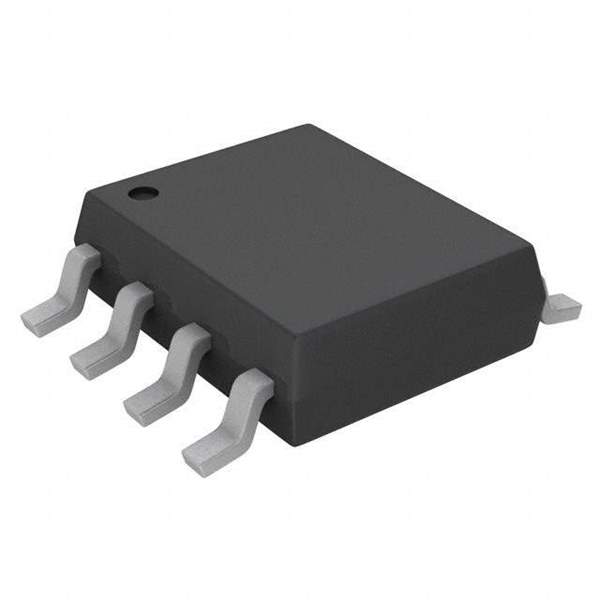

TLP2161(F) Real Image
Same model may have multiple batches, images only for reference.

TLP2161(F)

Part No TLP2161(F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description OPTOISO 2.5KV 2CH PUSH PULL 8SO / Logic Output Optoisolator 15MBd Push-Pull, Totem Pole 2500Vrms 2 Channel 20kV/µs CMTI 8-SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Logic Output
Mfr Toshiba Semiconductor and Storage
Package Tube
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 10 mA
Data Rate 15MBd
Propagation Delay tpLH / tpHL (Max) 80ns, 80ns
Rise / Fall Time (Typ) 3ns, 3ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Max) 10mA
Voltage - Supply 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO
Base Product Number TLP2161
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names TLP2161F
Standard Package 100
Win Source Part Number 1207984-TLP2161(F)
Ultra Librarian 3D Model Ultra Librarian TLP2161(F) CAD Model

Description

The TLP2161(F) is an optoisolator from Toshiba Semiconductor and Storage with a push-pull, totem pole output type and a data rate of 15MBd.

  • Input Type: DC
  • Maximum DC Forward Current: 10mA
  • Typical Forward Voltage: 1.5V
  • Rise and Fall Time: 3ns and 3ns respectively
  • Number of Channels: 2
  • Isolation Voltage: 2500Vrms
  • Common Mode Transient Immunity: 20kV/μs
  • Propagation Delay tpLH / tpHL (Max): 80ns and 80ns
  • Voltage Supply Range: 2.7V to 5.5V
  • Package/Case: 8-SOIC (0.154", 3.90mm Width)
  • Operating Temperature Range: -40°C to 125°C
