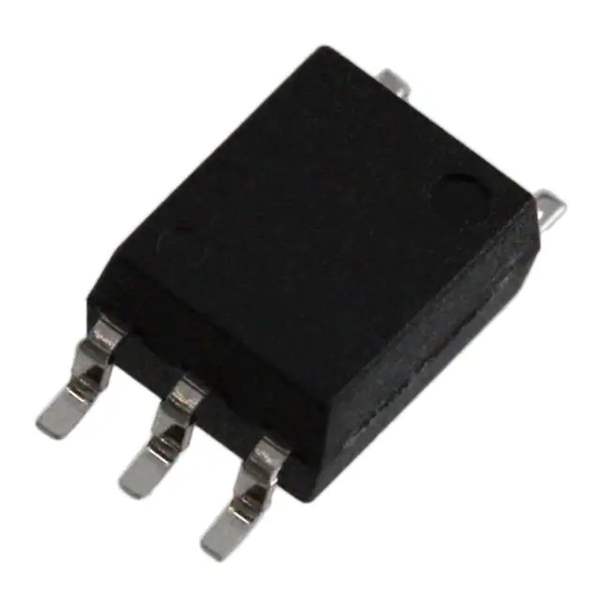

TLP151A(TPR,E) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP151A(TPR,E)

Part No TLP151A(TPR,E)
Manufacturer Toshiba Semiconductor and Storage
Catalog Isolators - Gate Drivers
Description Optically Isolated Gate Drivers Photo-IC 10 to 30V 3750 Vrms 500ns
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Isolators - Gate Drivers
Mfr Toshiba Semiconductor and Storage
Series -
Package Tape & Reel
Product Status Active
Number of Channels 1
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Voltage - Forward (Vf) (Typ) 1.55V
Current - DC Forward (If) (Max) 25 mA
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1371583-TLP151A(TPR,E)
Base Product Number TLP151
Approval Agency cUL, UL
Supplier Device Package 6-SO, 5 Lead
Package / Case 6-SOIC (0.179", 4.55mm Width), 5 Leads
Voltage - Output Supply 10V ~ 30V
Current - Peak Output 600mA
Current - Output High, Low 400mA, 400mA
Rise / Fall Time (Typ) 50ns, 50ns
Pulse Width Distortion (Max) 350ns
Propagation Delay tpLH / tpHL (Max) 500ns, 500ns
Technology Optical Coupling
Ultra Librarian 3D Model Ultra Librarian TLP151A(TPR,E) CAD Model

Description

The TLP151A(TPR,E) is an isolator gate driver from Toshiba Semiconductor and Storage.

  • Channel: Single
  • Forward Voltage: 1.55V
  • Output Current (Max): 400mA
  • Voltage Isolation: 3750Vrms
  • Temperature Range: -40°C to 110°C
  • Package: 6-SOIC (0.179", 4.55mm Width), 5 Leads
  • Mounting Type: Surface Mount
  • Common Mode Transient Immunity: 20kV/μs
  • Propagation Delay: 500ns
