The UCC27210D from Texas Instruments is an advanced high-side and low-side power driver designed to drive N-channel MOSFETs or IGBTs in a synchronous buck, boost, or half-bridge configuration. This robust driver is suitable for a wide range of power applications, including power supplies, motor controllers, and DC-DC converters, providing efficient and reliable operation.

Key Features

• High Drive Strength: The UCC27210D boasts a high peak output current of up to 4 A on both the high-side and low-side drivers, ensuring rapid charging and discharging of gate capacitance for fast switching transitions.
• Wide Supply Voltage Range: This driver operates over a broad supply voltage range from 10 V to 20 V, accommodating various application needs and simplifying power supply design.
• Independent Inputs: Separate high-side and low-side input pins provide design flexibility and the ability to implement non-synchronous topologies.
• Bootstrap Diode Integrated: An integrated bootstrap diode reduces external component count and simplifies the circuit layout, enhancing overall system reliability.
• Under-Voltage Lockout (UVLO): Both high-side and low-side drivers feature UVLO to ensure the driver operates only when the supply voltage is sufficient, thus protecting the power stage.
• Cross-Conduction Protection: The UCC27210D includes a programmable dead-time control to prevent shoot-through, enhancing system safety and efficiency.
• Extended Temperature Range: The device is capable of operating over an industrial temperature range from -40°C to 140°C, making it suitable for harsh environments.

Applications

• DC-DC Converters
• Motor Drives
• Power Supplies
• Inverters
• Class-D Audio Amplifiers

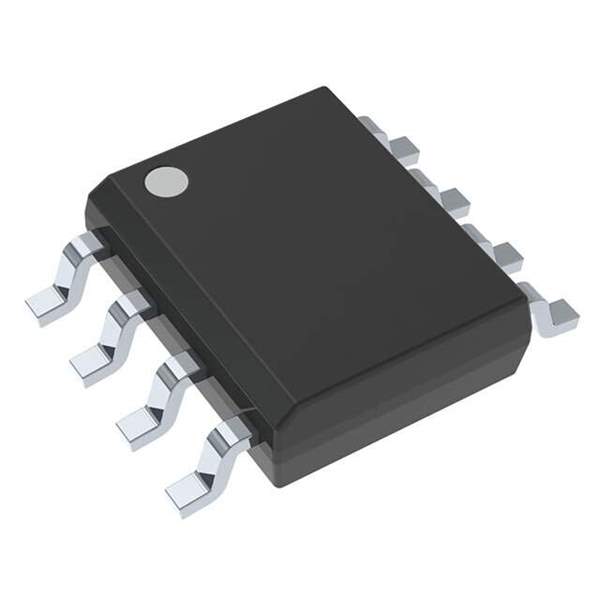

The UCC27210D is housed in a compact 8-pin SOIC package, offering a space-saving solution for high-density power applications. Its robust design and comprehensive feature set make it an excellent choice for engineers seeking to improve efficiency and reliability in their power systems.
