Overview of Texas Instruments TPS40210DGQR

The Texas Instruments TPS40210DGQR is a versatile and robust DC-to-DC controller designed for non-isolated power supplies. This component is part of the TPS40210 series, which is known for its wide input voltage range, making it suitable for a variety of applications, including industrial, automotive, and telecommunications systems.

Key Features

• Wide Input Voltage Range: The TPS40210DGQR operates with an input voltage range from 4.5V to 52V, accommodating a broad array of power sources and ensuring flexibility in system design.
• Adjustable Output Voltage: It offers an adjustable output voltage that can be set with external resistors, providing designers with the ability to tailor the output to meet specific requirements.
• High-Efficiency Operation: The device is designed for high-efficiency operation, which is crucial for reducing heat generation and improving reliability in end applications.
• Frequency Synchronization: With its frequency synchronization capability, the TPS40210DGQR allows for the reduction of electromagnetic interference (EMI), which is particularly important in noise-sensitive environments.
• Integrated Protections: The controller includes a suite of protection features such as overcurrent protection, undervoltage lockout (UVLO), and thermal shutdown, adding an extra layer of safety to the system.

Package and Availability

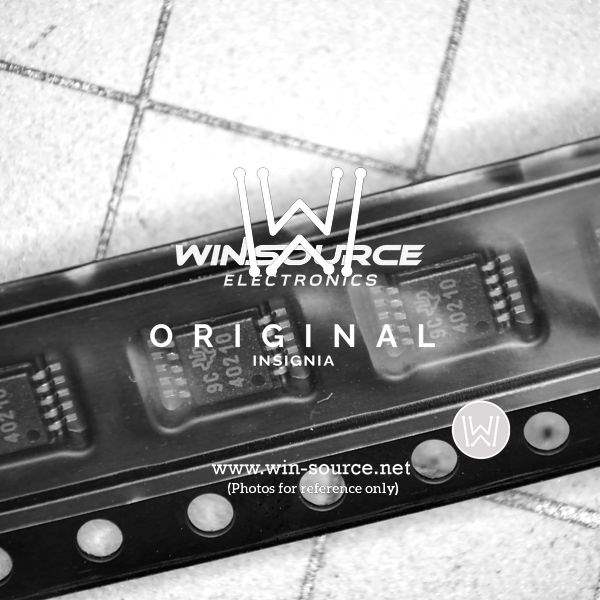

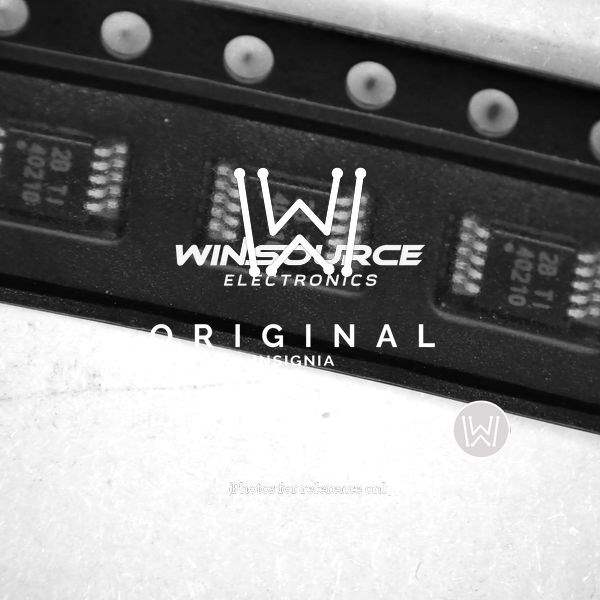

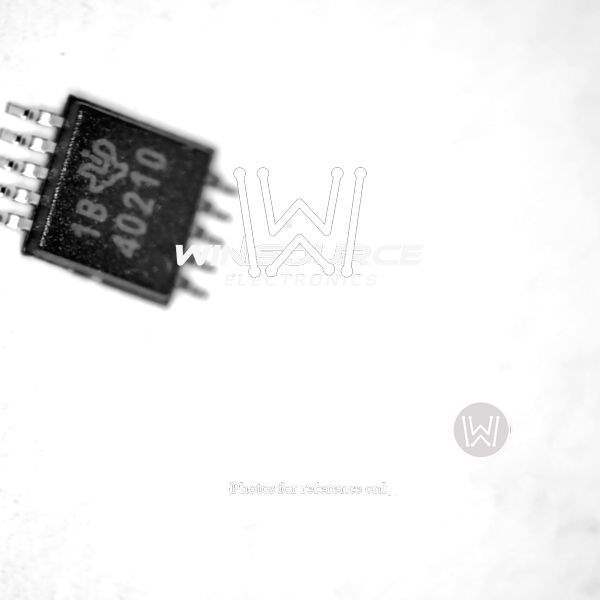

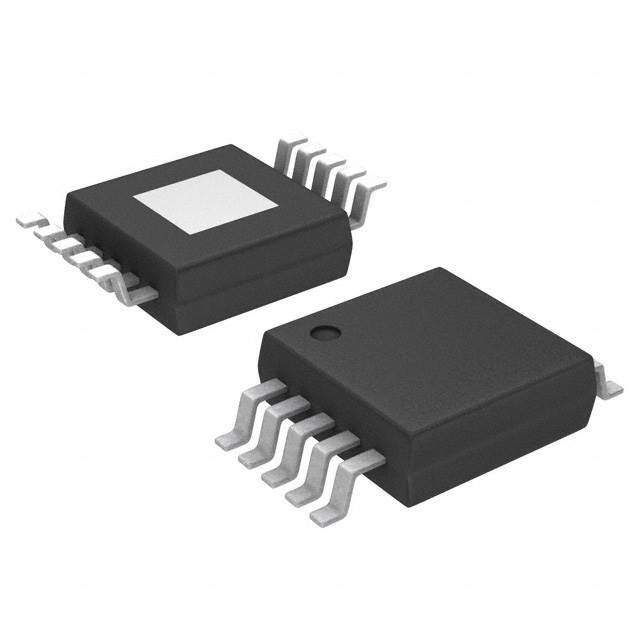

The TPS40210DGQR comes in an MSOP-10 (DGQR) package, which is compact and suitable for space-constrained applications. The device is available in tape and reel format, facilitating efficient handling and assembly during the manufacturing process.

Applications

Due to its flexible design and comprehensive feature set, the TPS40210DGQR can be used in a wide range of applications, including:

• Industrial power supplies
• Automotive systems
• Telecommunication equipment
• Power conditioning for renewable energy systems
• Portable and battery-powered devices

With its robustness and adaptability, the Texas Instruments TPS40210DGQR is an excellent choice for any designer looking to create a reliable and efficient power management solution.
