Introducing the TPD4E05U06DQAR by Texas Instruments

The TPD4E05U06DQAR is a state-of-the-art electrostatic discharge (ESD) protection device designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This compact and highly efficient component is engineered to safeguard high-speed interfaces from the damaging effects of ESD events, which can be detrimental to the integrity and longevity of electronic systems.

Featuring a quartet of ESD clamps, the TPD4E05U06DQAR provides bidirectional transient voltage suppression (TVS) for four data or signal lines. Each channel can withstand ESD strikes up to ±10kV (Contact Discharge) and ±20kV (Air-Gap Discharge) as per the IEC 61000-4-2 international standard, ensuring robust protection for sensitive circuits.

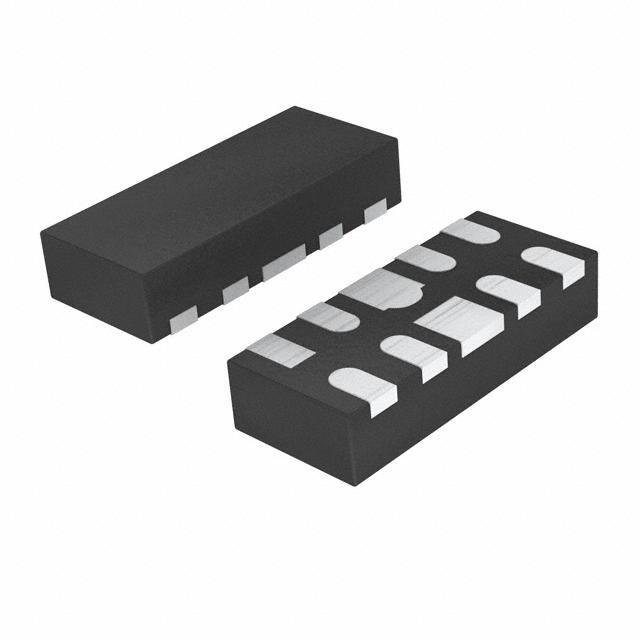

The device is housed in a compact, leadless DQFN-10 package, measuring just 1.5mm x 1.0mm, making it an ideal choice for space-constrained applications. Despite its small size, it doesn't compromise on performance. With a low clamping voltage and low dynamic resistance, the TPD4E05U06DQAR ensures that protected interfaces, such as USB 2.0, HDMI, and LVDS, maintain signal integrity and performance even in the face of ESD events.

Moreover, the TPD4E05U06DQAR is characterized by its low capacitance design, typically just 0.5 pF per channel, which minimizes signal attenuation and preserves the integrity of high-speed signals up to 10 Gbps. This feature is particularly important for applications that require high data rates and minimal signal degradation.

Designed for easy integration into a variety of electronic systems, the TPD4E05U06DQAR is suitable for use in consumer electronics, computing devices, mobile phones, and other portable gadgets where ESD protection is critical. Its flow-through design simplifies PCB layout and helps to reduce signal crosstalk, ensuring a clean, noise-free environment for high-speed data transmission.

In summary, the TPD4E05U06DQAR from Texas Instruments represents a reliable and efficient solution for protecting advanced electronic systems from the risks of electrostatic discharge. With its high-level ESD protection, low capacitance, and compact footprint, this device is an essential component for designers looking to enhance the durability and reliability of their high-speed interfaces.
