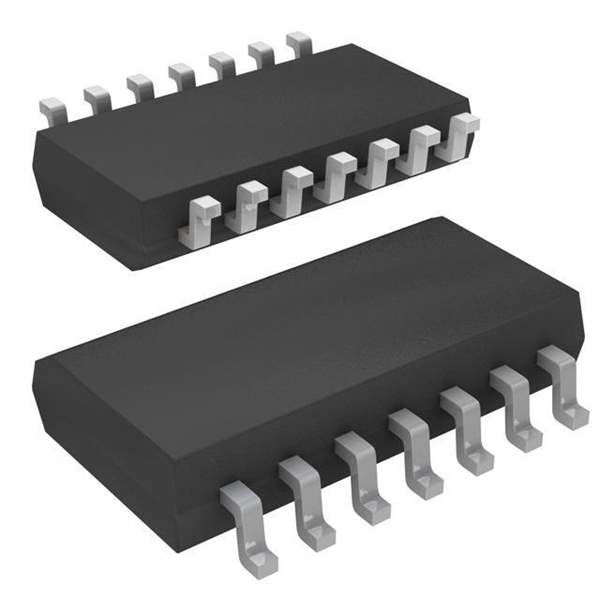

SN74HC00NSR Texas Instruments
Same model may have multiple batches, images only for reference.

SN74HC00NSR

Part No SN74HC00NSR
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description IC GATE NAND 4CH 2-INP 14-SO
Datasheet
SN74HC00NSR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Logic Type NAND Gate
Number of Circuits 4
Number of Inputs 2
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 5.2mA, 5.2mA
Logic Level - Low 0.5 V to 1.8 V
Logic Level - High 1.5 V to 4.2 V
Max Propagation Delay @ V, Max CL 15ns @ 6V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 14-SOP
Dimension 14-SOIC (0.209", 5.30mm Width)
Win Source Part Number 030102-SN74HC00NSR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SN74HC00NSR CAD Model

Description

The SN74HC00NSR is a high-performance, advanced integrated circuit (IC) product from Texas Instruments, a global leader in semiconductor design and manufacturing.

  • Series: 74HC00
  • Type: Quadruple 2-input positive-NAND gate
  • Operating Voltage Range: 2V to 6V
  • Technology: CMOS
  • Operating Temperature Range: -40°C to 85°C
  • Package: 14-pin SOIC package
  • Load Driving Capability: Directly drive two LS-TTL loads
