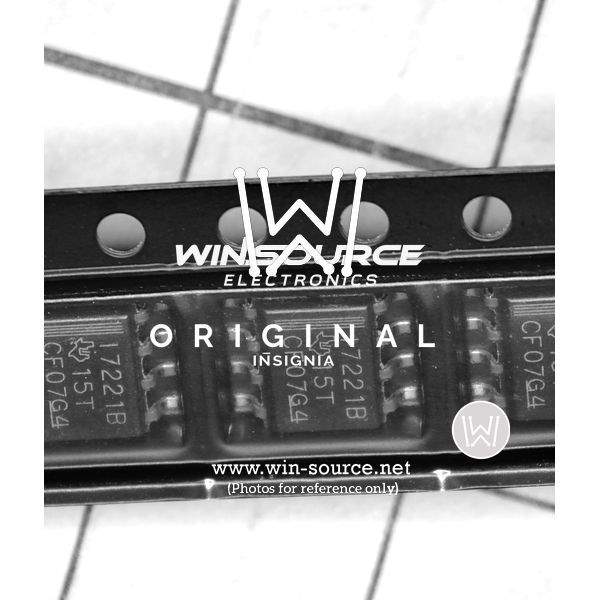

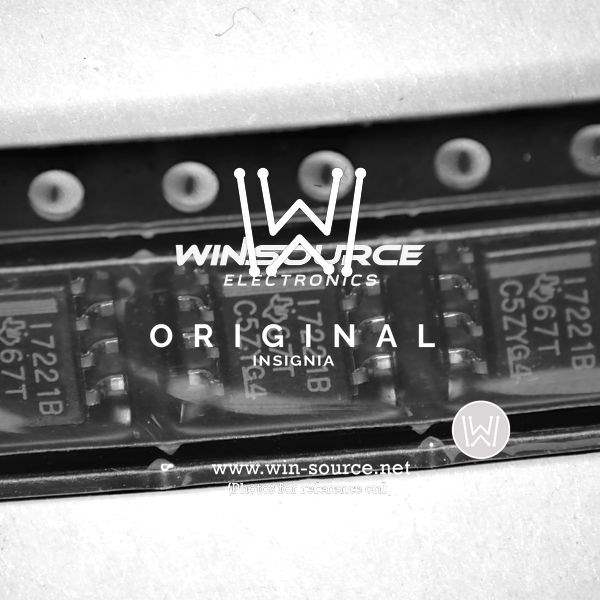

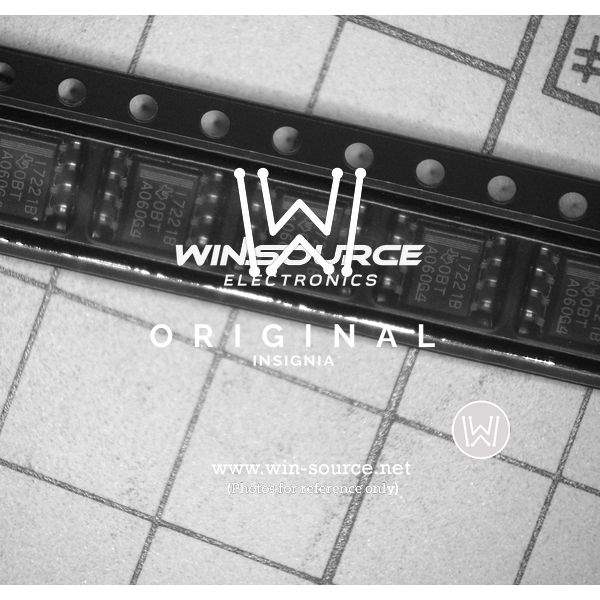

ISO7221BDR Real Image ISO7221BDR real image567 ISO7221BDR Real Image1 ISO7221BDR Real Image2 ISO7221BDR Real Image3 ISO7221BDR Real Image4 ISO7221BDR Real Image5
ISO7221BDR Real Image ISO7221BDR real image567 ISO7221BDR Real Image1 ISO7221BDR Real Image2 ISO7221BDR Real Image3 ISO7221BDR Real Image4 ISO7221BDR Real Image5
Same model may have multiple batches, images only for reference.

ISO7221BDR

Part No ISO7221BDR
Manufacturer Texas Instruments
Catalog Digital Isolators
Description DGTL ISO 2.5KV GEN PURP 8SOIC
Datasheet
ISO7221BDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 1/1
Channel Type Unidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 5Mbps
Propagation Delay tpLH / tpHL (Max) 70ns, 70ns
Pulse Width Distortion (Max) 3ns
Rise and Fall Time 1ns, 1ns
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Case / Package 8-SOIC
Win Source Part Number 002048-ISO7221BDR
Family Name ISO7221B
Introduction Date February 01, 2008
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISO7221BDR CAD Model

Description

The ISO7221BDR is a high-performance, digital isolator product developed by Texas Instruments, a leading global semiconductor company.

  • Channels: Dual-channel with 1/1 channel directionality
  • Insulation: Silicon dioxide (SiO2)
  • Isolation: Up to 2500 Vrms for 1 minute per UL1577
  • Data Rate: Up to 1 Mbps
  • Power Consumption: 1.8 mA per channel @ 1 Mbps
  • Package: Compact 8-pin SOIC package
  • Temperature Range: -40°C to +125°C
