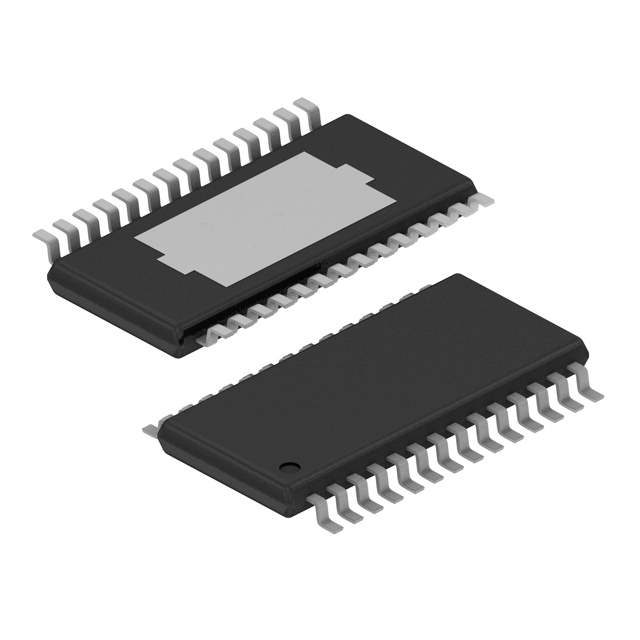

DRV8824PWPR Real Image DRV8824PWPR real image
DRV8824PWPR Real Image DRV8824PWPR real image
Same model may have multiple batches, images only for reference.

DRV8824PWPR

Part No DRV8824PWPR
Manufacturer Texas Instruments
Catalog PMIC - Motor Drivers, Controllers
Description Stepper Motor Controller 28-Pin HTSSOP EP T/R / IC MOTOR DRIVER PAR 28HTSSOP
Datasheet
DRV8824PWPR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET
Step Resolution 1 to 1/32
Applications General Purpose
Output Current 1.6A
Supply Voltage - Operating 8.2 V to 45 V
Voltage - Load 8.2 V to 45 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 28-HTSSOP
Win Source Part Number 014636-DRV8824PWPR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DRV8824
Introduction Date March 01, 2010
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian DRV8824PWPR CAD Model

Description

Overview of DRV8824PWPR

The DRV8824PWPR is a micro-stepping motor driver IC that enables precise control over stepper motors. It offers a versatile solution for motor-driven applications, enhancing performance and reliability.

  • Applications:
    • Automated actuators
    • Industrial automation
    • Pick and place machines
  • Features and Benefits:
    • Compact design with heat management
    • Adjustable current control
    • Easy interfacing with microcontroller systems
  • Additional Details: Operating voltage range: 8.2-45V; Supports up to 1.5A full-scale current per phase
