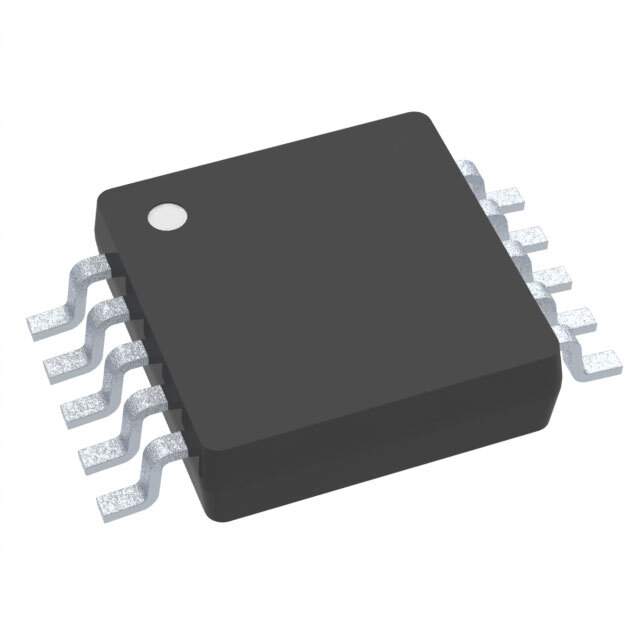

ADS1118IDGSR Real Image ADS1118IDGSR real image1511 ADS1118IDGSR Real Image1 ADS1118IDGSR Real Image2 ADS1118IDGSR Real Image3 ADS1118IDGSR Real Image4 ADS1118IDGSR Real Image5 ADS1118IDGSR Real Image6 ADS1118IDGSR Real Image7
ADS1118IDGSR Real Image ADS1118IDGSR real image1511 ADS1118IDGSR Real Image1 ADS1118IDGSR Real Image2 ADS1118IDGSR Real Image3 ADS1118IDGSR Real Image4 ADS1118IDGSR Real Image5 ADS1118IDGSR Real Image6 ADS1118IDGSR Real Image7
Same model may have multiple batches, images only for reference.

ADS1118IDGSR

Part No ADS1118IDGSR
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 16BIT SPI 860SPS 10MSOP
Datasheet
ADS1118IDGSR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Bits 16
Sampling Rate 860
Number of Inputs 2, 4
Input Type Differential, Single Ended
Data Interface SPI
Configuration MUX-PGA-ADC
Number of A/D Converters 1
Reference Type Internal
Analog Supply Voltage 2 V to 5.5 V
Digital Supply Voltage 2 V to 5.5 V
Features PGA, Temperature Sensor
Temperature Range - Operating -40°C to 125°C
Case / Package 10-VSSOP
Win Source Part Number 009240-ADS1118IDGSR
Family Name ADS1118
Introduction Date December 01, 2010
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ADS1118IDGSR CAD Model

Description

ADS1118IDGSR

The ADS1118IDGSR is a compact 16-bit ADC with integrated temperature sensor, offering SPI connectivity for streamlined integration. It is known for its remarkable accuracy and stability, making it suited for complex electronic systems.

  • Thermal Monitoring and Control
  • Biomedical Devices
  • Scientific Instrumentation
  • Smart Grid Applications
  • Advanced Energy Systems

Features and Benefits:

  • Temperature Compensation: Ensures reliable performance across varied temperatures.
  • Flexible Input Range: Adjustable input configurations cater to diverse application needs.
  • Extended Temperature Range: Operates efficiently from -40°C to +125°C.

The robust design of the ADS1118IDGSR provides unmatched performance for precision-demanding applications.
