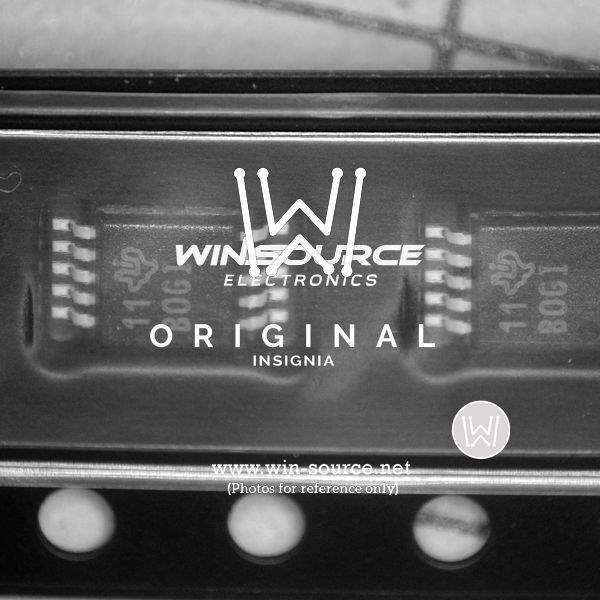

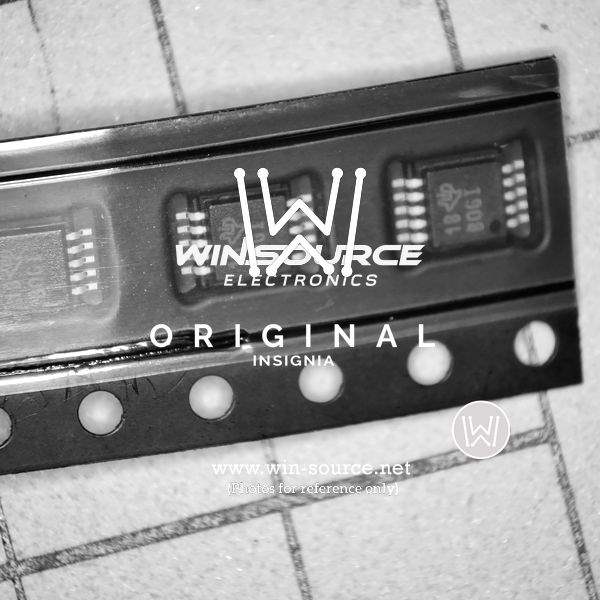

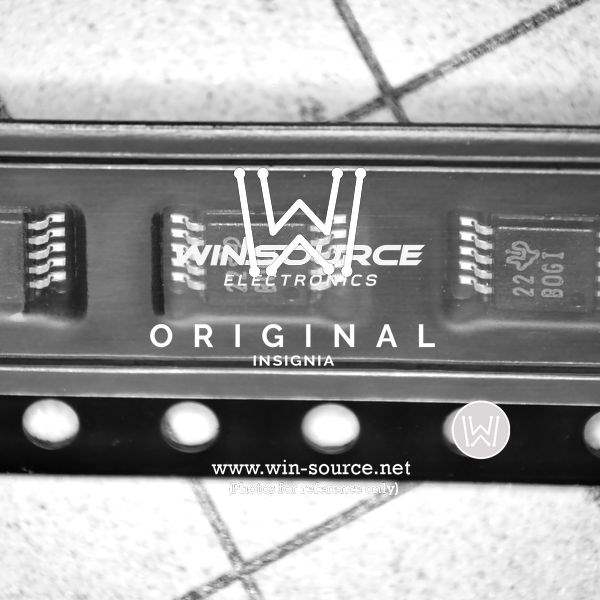

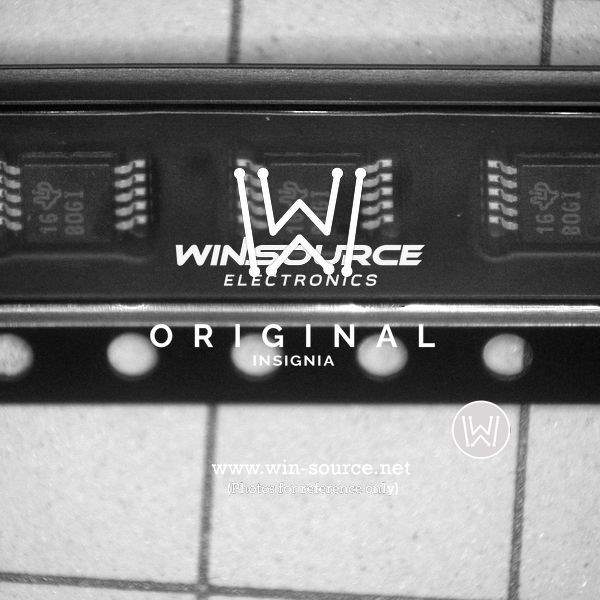

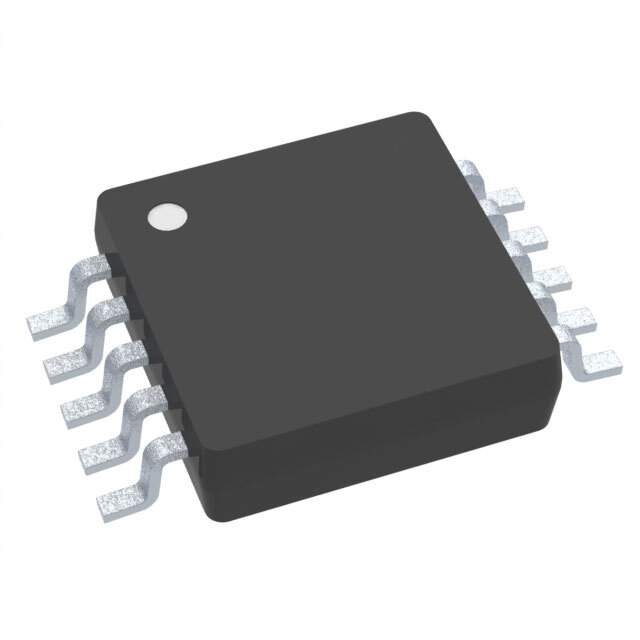

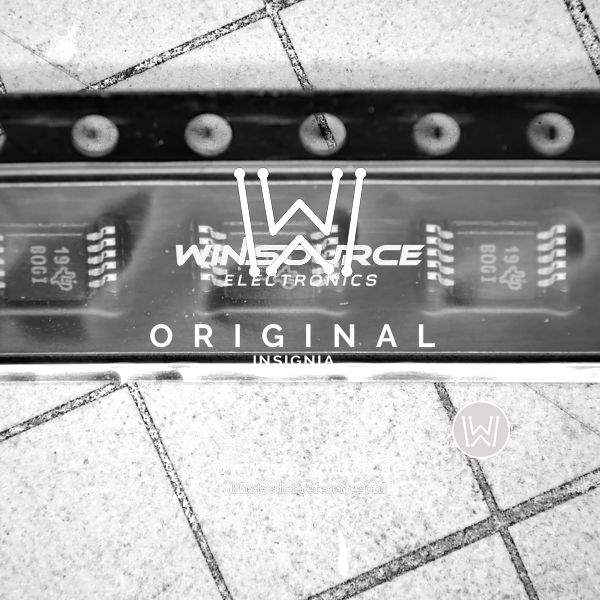

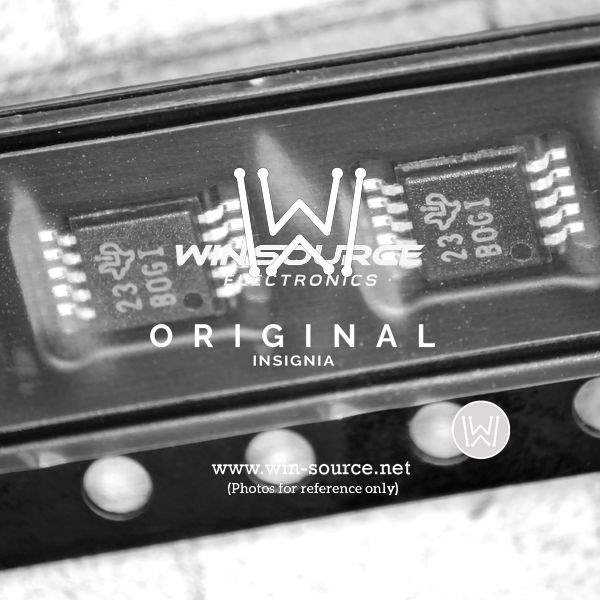

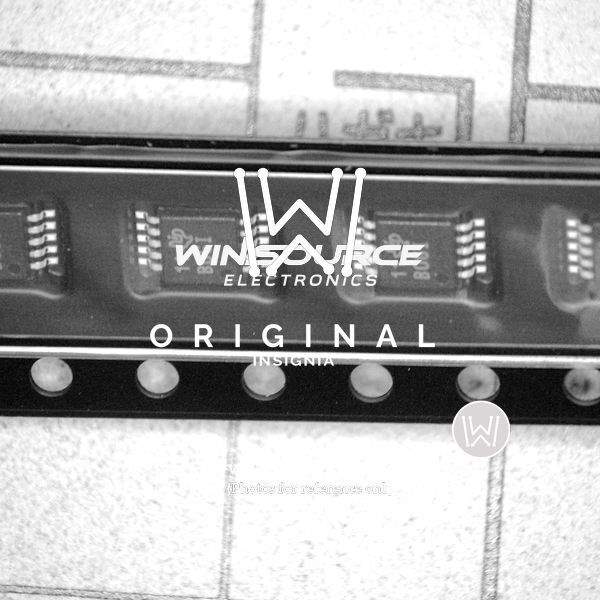

ADS1115IDGST Real Image ADS1115IDGST real image1505 ADS1115IDGST real image1506 ADS1115IDGST real image1507 ADS1115IDGST real image1508 ADS1115IDGST real image1509 ADS1115IDGST real image1510 ADS1115IDGST Real Image1 ADS1115IDGST Real Image2 ADS1115IDGST Real Image3 ADS1115IDGST Real Image4 ADS1115IDGST Real Image5 ADS1115IDGST Real Image6 ADS1115IDGST Real Image7 ADS1115IDGST Real Image8 ADS1115IDGST Real Image9 ADS1115IDGST Real Image10 ADS1115IDGST Real Image11
ADS1115IDGST Real Image ADS1115IDGST real image1505 ADS1115IDGST real image1506 ADS1115IDGST real image1507 ADS1115IDGST real image1508 ADS1115IDGST real image1509 ADS1115IDGST real image1510 ADS1115IDGST Real Image1 ADS1115IDGST Real Image2 ADS1115IDGST Real Image3 ADS1115IDGST Real Image4 ADS1115IDGST Real Image5 ADS1115IDGST Real Image6 ADS1115IDGST Real Image7 ADS1115IDGST Real Image8 ADS1115IDGST Real Image9 ADS1115IDGST Real Image10 ADS1115IDGST Real Image11
Same model may have multiple batches, images only for reference.

ADS1115IDGST

Part No ADS1115IDGST
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 16-BIT I2C PROGBL 10-MSOP
Datasheet
ADS1115IDGST Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Bits 16
Sampling Rate 860
Number of Inputs 2, 4
Input Type Differential, Single Ended
Data Interface I2C
Configuration MUX-PGA-ADC
Number of A/D Converters 1
Reference Type Internal
Analog Supply Voltage 2 V to 5.5 V
Digital Supply Voltage 2 V to 5.5 V
Features PGA, Selectable Address
Temperature Range - Operating -40°C to 125°C
Case / Package 10-VSSOP
Win Source Part Number 009239-ADS1115IDGST
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Signal Processing, Portable Devices, Consumer Electronics, System Monitoring, Automation & Process Control
Ultra Librarian 3D Model Ultra Librarian ADS1115IDGST CAD Model

Description

ADS1115IDGST

The ADS1115IDGST offers high precision analog-to-digital conversion ideal for demanding applications. This 16-bit ADC incorporates an adjustable gain feature and I2C connectivity, facilitating easy integration.

  • Temperature Monitoring
  • Medical Equipment
  • Remote Sensors
  • Battery Monitoring Systems
  • Variable Frequency Drives

Features and Benefits:

  • Adjustable Data Rate: Allows customization for optimizing performance versus power consumption.
  • Low Noise: Superior noise rejection improves signal integrity.
  • Powerful Performance: Facilitates high precision measurements across industrial and consumer applications.

The compact form factor and feature set of the ADS1115IDGST make it a popular choice among engineers.
