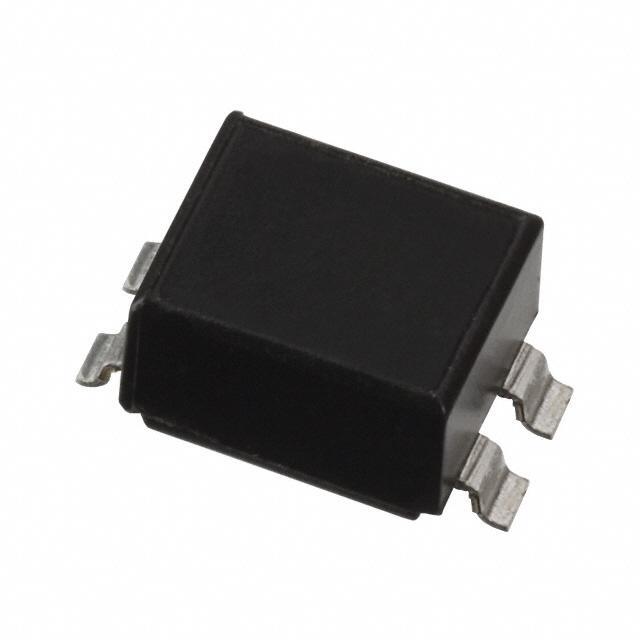

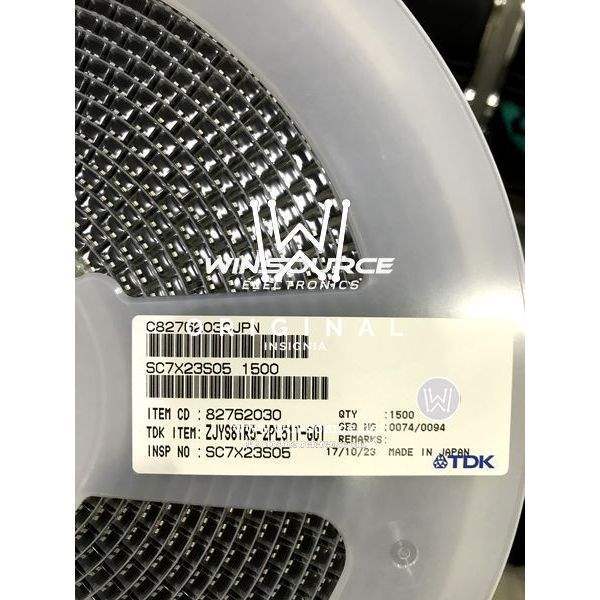

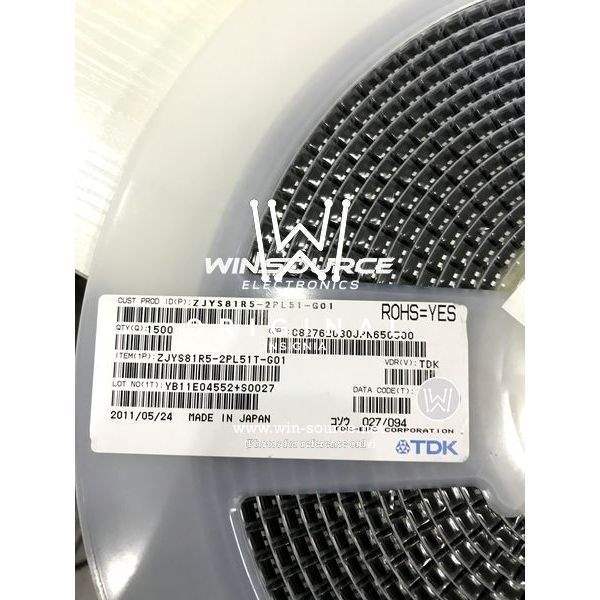

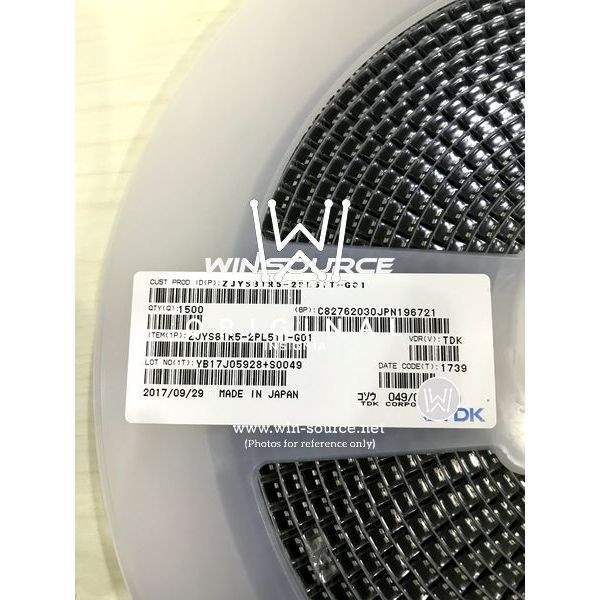

ZJYS81R5-2PL51T-G01 TDK Corporation ZJYS81R5-2PL51T-G01 real image10194 ZJYS81R5-2PL51T-G01 Real Image ZJYS81R5-2PL51T-G01 label picture 2 ZJYS81R5-2PL51T-G01 label picture 3 ZJYS81R5-2PL51T-G01 label picture 4 ZJYS81R5-2PL51T-G01 real image ZJYS81R5-2PL51T-G01 real image 2
ZJYS81R5-2PL51T-G01 TDK Corporation ZJYS81R5-2PL51T-G01 real image10194 ZJYS81R5-2PL51T-G01 Real Image ZJYS81R5-2PL51T-G01 label picture 2 ZJYS81R5-2PL51T-G01 label picture 3 ZJYS81R5-2PL51T-G01 label picture 4 ZJYS81R5-2PL51T-G01 real image ZJYS81R5-2PL51T-G01 real image 2
Same model may have multiple batches, images only for reference.

ZJYS81R5-2PL51T-G01

Part No ZJYS81R5-2PL51T-G01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 500MA 2LN 2KOHM SMD AEC-Q200
Datasheet
ZJYS81R5-2PL51T-G01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 2 kOhm @ 10MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 300 mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C to 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Height (Max) 0.197" (5.00mm)
Dimension Horizontal, 4 Gull Wing
Win Source Part Number 036732-ZJYS81R5-2PL51T-G01
Family Name ZJYS
Introduction Date July 26, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ZJYS81R5-2PL51T-G01 CAD Model

Description

The ZJYS81R5-2PL51T-G01 from TDK Corporation is a high popularity electronic component.

  • Type: Common-mode filter
  • Suitable for: Signal line applications
  • Voltage Rating: 80V
  • Current Rating (Max): 500mA
  • Filter Type: Signal line
  • Impedance: 2 kOhm @ 10MHz
  • DC Resistance (DCR): 300 mOhm
  • Rated: AEC-Q200
  • Supply and Demand Status: Sufficient
