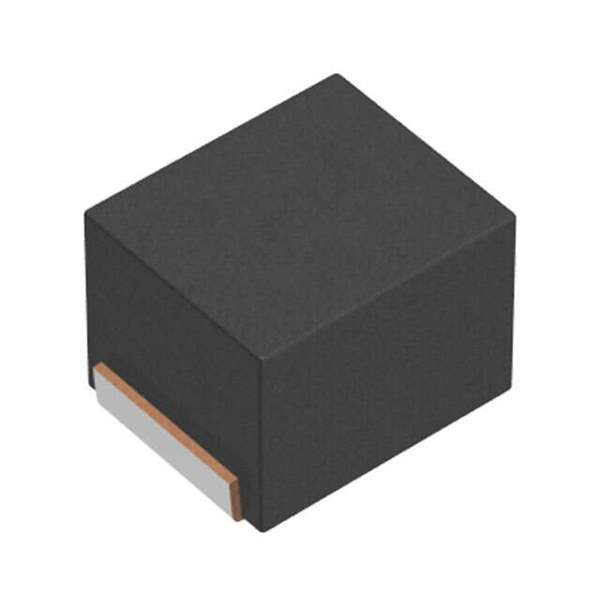

NLCV32T-2R2M-PF Real Image
Same model may have multiple batches, images only for reference.

NLCV32T-2R2M-PF

Part No NLCV32T-2R2M-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.2A 115 MOHM
Datasheet
NLCV32T-2R2M-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.2A
DC Resistance (DCR) 138 mOhm Max
Q @ Freq 15 @ 7.96MHz
Frequency - Self Resonant 68MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 7.96MHz
Mounting SMD (SMT)
Case / Package 1210
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 060470-NLCV32T-2R2M-PF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian NLCV32T-2R2M-PF CAD Model

Description

The TDK NLCV32T-2R2M-PF is a wirewound inductor that is used in various electronic devices.

  • Popularity: Medium
  • Supply and Demand: Balanced
  • Inductance: 2.2μH
  • Current Rating: 1.2A
  • DC Resistance (DCR): 138 mOhm Max
