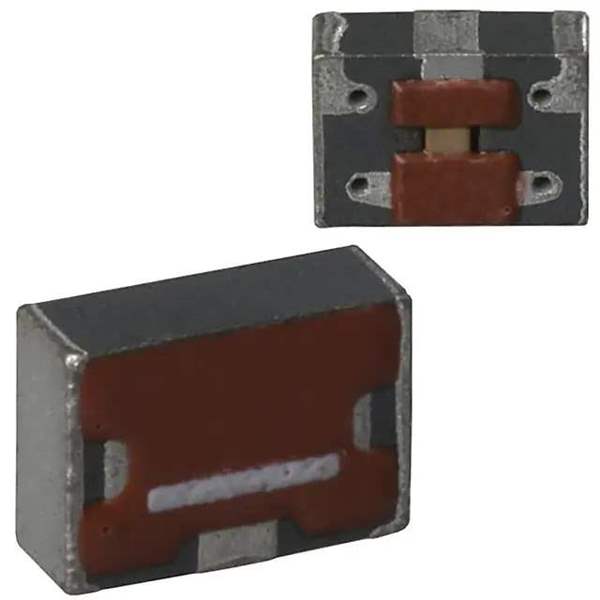

ACF451832-153-TLD01 Real Image
Same model may have multiple batches, images only for reference.

ACF451832-153-TLD01

Part No ACF451832-153-TLD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD / LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel 300 mA 1812 (4532 Metric), 3 PC Pad
Datasheet
ACF451832-153-TLD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr TDK Corporation
Series ACF
Package Tape & Reel
Product Status Obsolete
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 11MHz ~ 70MHz
Resistance - Channel (Ohms) 0.15
Current 300 mA
ESD Protection No
Temperature Range - Operating -25°C ~ 85°C
Applications Data Lines for Mobile Devices
Voltage - Rated 50V
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), 3 PC Pad
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height 0.079" (2.00mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 909192-ACF451832-153-TLD01
Ultra Librarian 3D Model Ultra Librarian ACF451832-153-TLD01 CAD Model

Description

The 909192-ACF451832-153-TLD01 is an EMI/RFI filter from TDK Corporation. It belongs to the ACF series of filters and is designed for data lines in mobile devices.

  • Voltage Rating: 50V
  • Current Rating: 300 mA
  • Filter Type: Low Pass
  • Filter Order: 3rd Order
  • Package: 1812 (4532 Metric) with 3 PC pad
  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Height: 0.079" (2.00mm)
  • Attenuation: 25dB @ frequencies ranging from 11MHz to 70MHz
  • Resistance: 0.15 ohms per channel
  • Status: Obsolete
