The SMAJ70A-TR from STMicroelectronics is a robust and reliable Transil™ TVS diode, designed to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events. This product is particularly well-suited for applications requiring high surge capability to protect against unpredictable over-voltage events.

Key Features

• Stand-off Voltage: The SMAJ70A-TR has a stand-off voltage of 70V, which makes it suitable for a range of over-voltage protection applications.
• Peak Pulse Power: It can handle peak pulse power dissipation of 400W (10/1000μs surge), providing a high level of protection against power surges.
• Unidirectional Functionality: As a unidirectional TVS diode, it is specifically designed to protect one polarity over-voltage events, making it ideal for DC power supply applications.
• Low Clamping Voltage: The device offers a low clamping voltage relative to its stand-off voltage, which ensures that the protected components are exposed to minimal stress during transient conditions.
• Fast Response Time: The SMAJ70A-TR boasts an exceptionally fast response time to transient events, typically in the order of picoseconds, ensuring immediate protection for sensitive circuits.

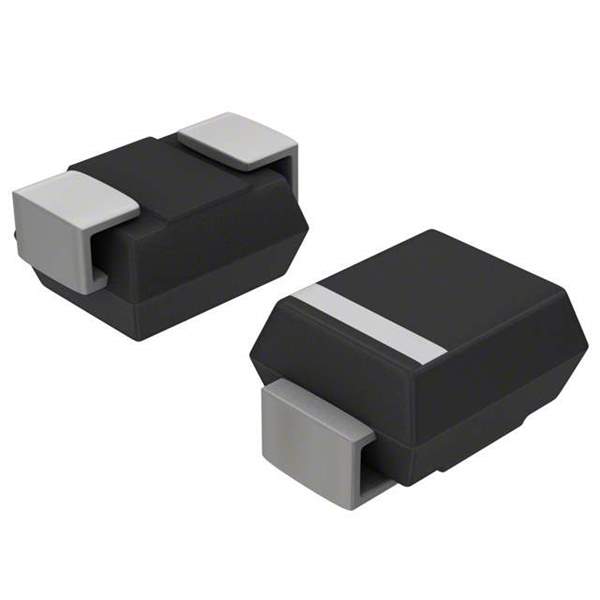

• DO-214AC (SMA) Package: Enclosed in a compact and robust DO-214AC (SMA) package, it offers a space-saving solution for PCB layout design.
• Compliance: This product meets the IEC 61000-4-2 standard for ESD protection, and is RoHS compliant, ensuring environmental safety and global acceptance.

Applications

The SMAJ70A-TR is versatile and can be used in a broad range of applications. It is ideal for protecting sensitive electronics in:

• Industrial systems
• Consumer electronics
• Telecommunication devices
• Computer systems
• Portable devices
• Power supply units

Conclusion

In conclusion, the SMAJ70A-TR from STMicroelectronics is a high-performance TVS diode that offers excellent surge protection for electronic devices across a variety of industries. Its robust design, coupled with fast response time and compliance with international standards, makes it a top choice for engineers and designers looking to enhance the durability and reliability of their electronic products.
