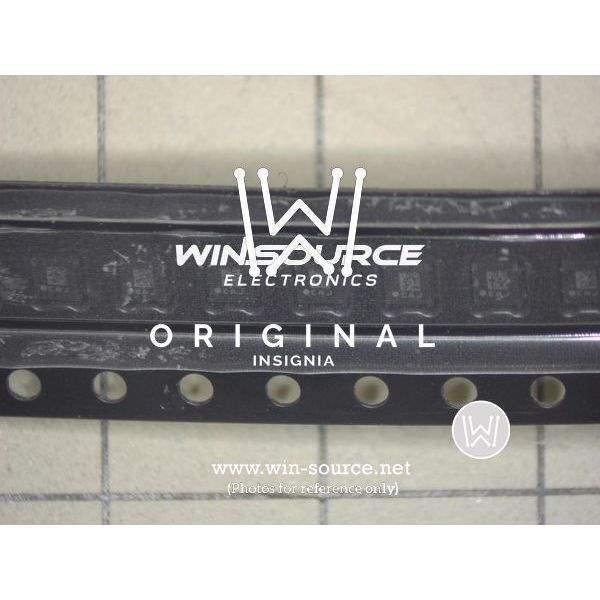

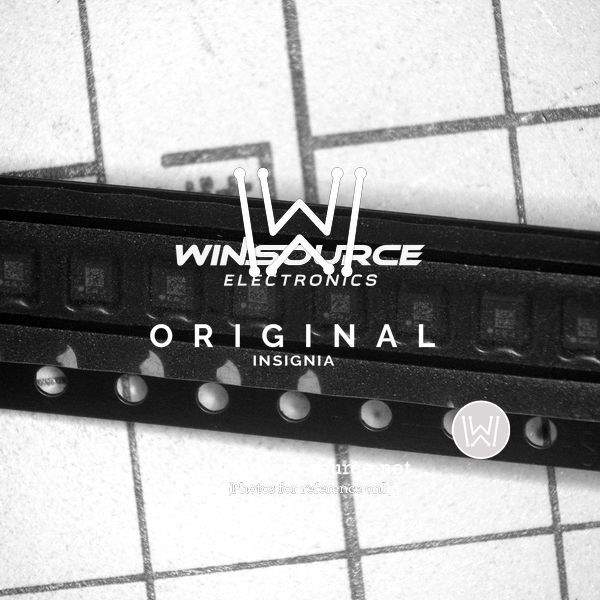

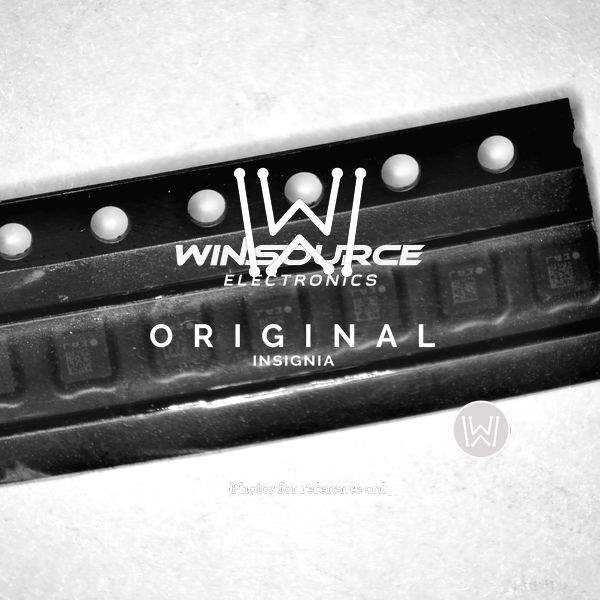

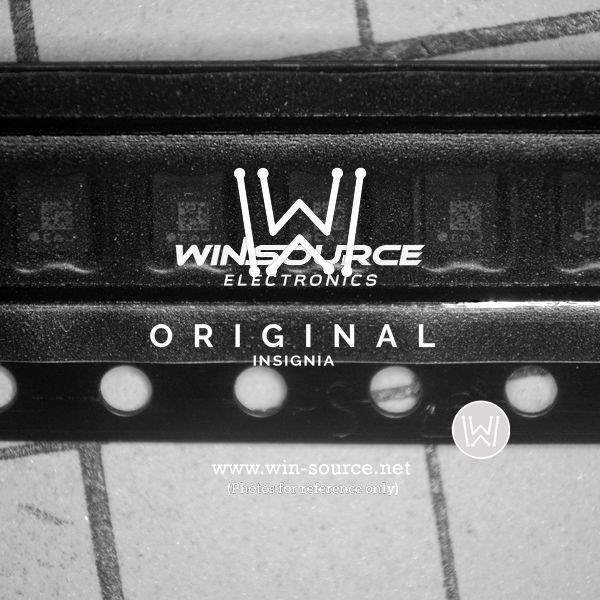

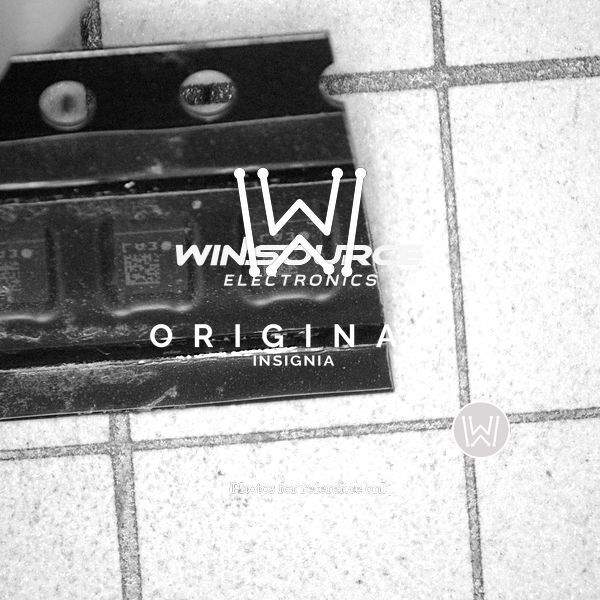

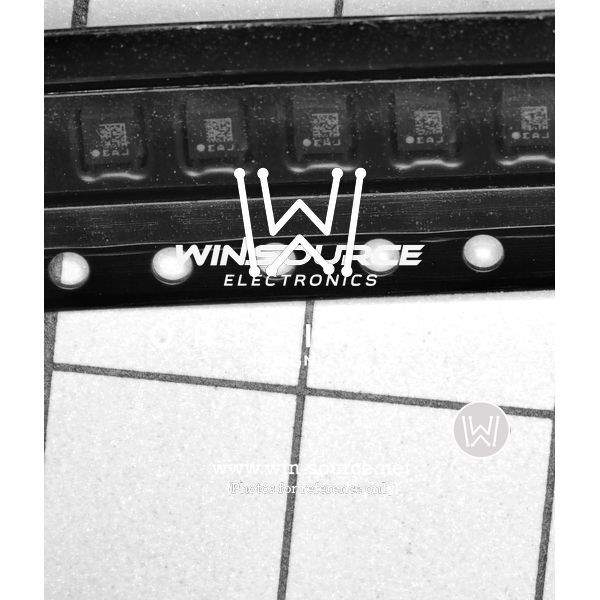

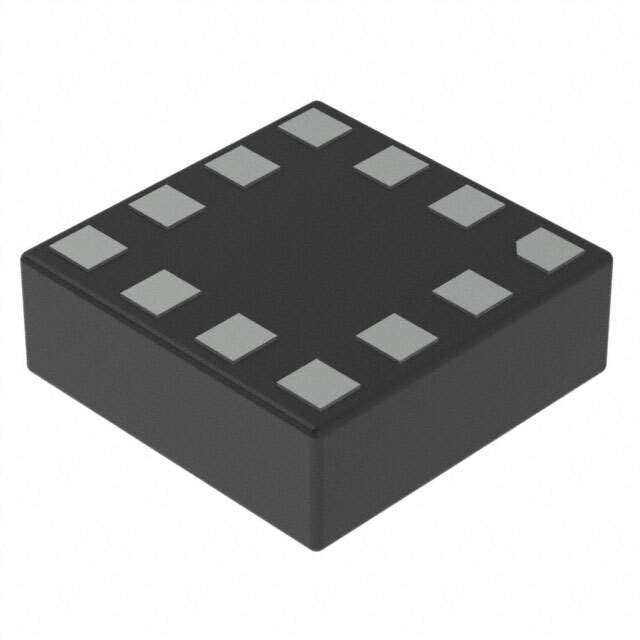

STMicroelectronics LIS3MDLTR 3-Axis Magnetometer

The LIS3MDLTR from STMicroelectronics is a high-performance 3-axis digital magnetometer that is designed to deliver precise magnetic field measurements. This compact sensor is part of ST's MEMS family and is ideal for a variety of applications, including compassing, navigation, and for enhancing features in consumer electronics like smartphones and wearables.

Key Features

• Ultra-Low Power Consumption: The device is optimized for low-power operations, making it suitable for battery-powered applications where efficiency is crucial.
• High Accuracy: With a full-scale range of ±4/±8/±12/±16 gauss, the LIS3MDLTR provides high-resolution measurements for precise heading detection.
• Advanced Calibration: The sensor includes onboard hard-iron calibration to compensate for environmental interference, ensuring reliable and consistent readings.
• I2C/SPI Digital Interface: Flexible connectivity options are provided through I2C and SPI interfaces, facilitating easy integration into a variety of systems.
• Temperature Sensor: An integrated temperature sensor allows for temperature compensation of the magnetic sensor readings, enhancing overall accuracy.

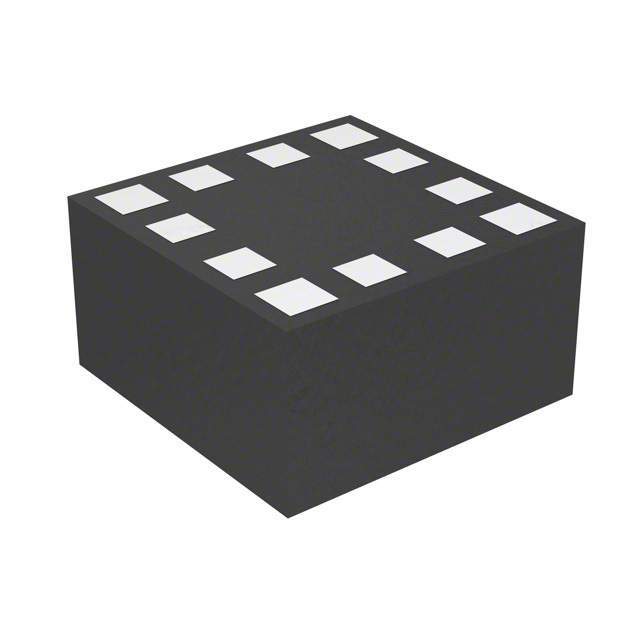

• Compact Form Factor: The small size of the LIS3MDLTR (LGA package) makes it easy to incorporate into space-constrained designs without sacrificing performance.

Applications

The versatility of the LIS3MDLTR allows it to be used in a multitude of applications, including but not limited to:

• Smartphones and tablets for compass and navigation functions
• Wearable devices for activity tracking and navigation
• Industrial applications such as drone heading control and positioning
• Telematics and navigational aids for automotive use

With its robust design and high-performance capabilities, the LIS3MDLTR magnetometer from STMicroelectronics is an excellent choice for developers looking to enhance their products with reliable and accurate magnetic field sensing.
