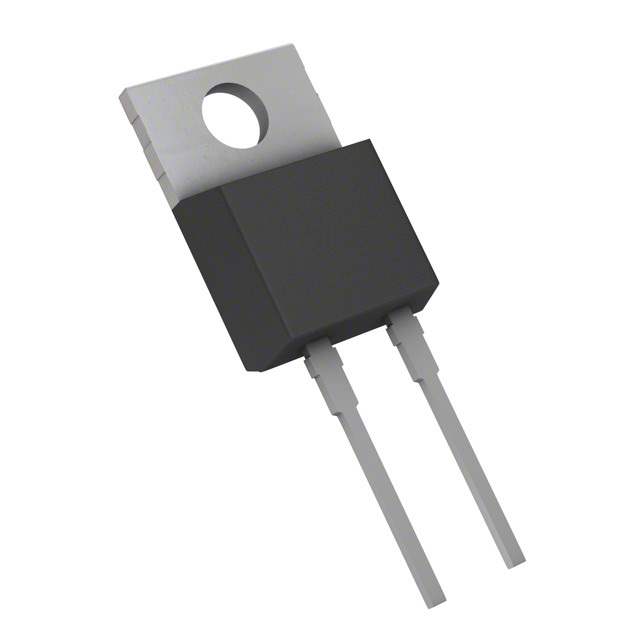

Same model may have multiple batches, images only for reference.

MBR10100

Name: MBR10100
Brand: SMC Diode Solutions
SKU: 220572
Availability: InStock
Rating: 4.94 (5 reviews)

Get a Quote

Part No	MBR10100
Manufacturer	SMC Diode Solutions
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 100V TO220AC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	SMC Diode Solutions
Package	Tube
Product Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	100 V
Voltage - Forward (Vf) (Max) @ If	850 mV @ 10 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1 mA @ 100 V
Mounting Type	Through Hole
Package / Case	TO-220-2
Supplier Device Package	TO-220AC
Operating Temperature - Junction	-55°C ~ 150°C
Base Product Number	MBR1010
Standard Package	50 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	220572-MBR10100
Ultra Librarian 3D Model	Ultra Librarian MBR10100 CAD Model

Description

The MBR10100 is a fast recovery Schottky diode designed for rectification in electronic circuits.

Type: Fast recovery Schottky diode
Voltage Rating: 100V
Application: High-speed switching and low forward voltage drop
Package: TO-220-2
Mounting: Through-hole
Manufacturer: SMC Diode Solutions
Status: Active
Standard Package: 50 pieces
Alternative Diodes: DSS10-01A, MBR1090 C0G, and MBR1090HC0
