CP2102N-A02-GQFN24R

Part No CP2102N-A02-GQFN24R
Manufacturer Silicon Labs
Catalog Interface - Controllers
Description IC USB TO UART BRIDGE QFN24 / USB Bridge, USB to UART USB 2.0 UART Interface 24-QFN (4x4)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Controllers
Mfr Silicon Labs
Series USBXpress™
Package Tape & Reel
Product Status Active
Programmable Not Verified
Protocol USB
Function Bridge, USB to UART
Interface UART
Standards USB 2.0
Voltage - Supply 3V ~ 3.6V
Current - Supply 9.5mA
Temperature Range - Operating -40°C ~ 85°C (TA)

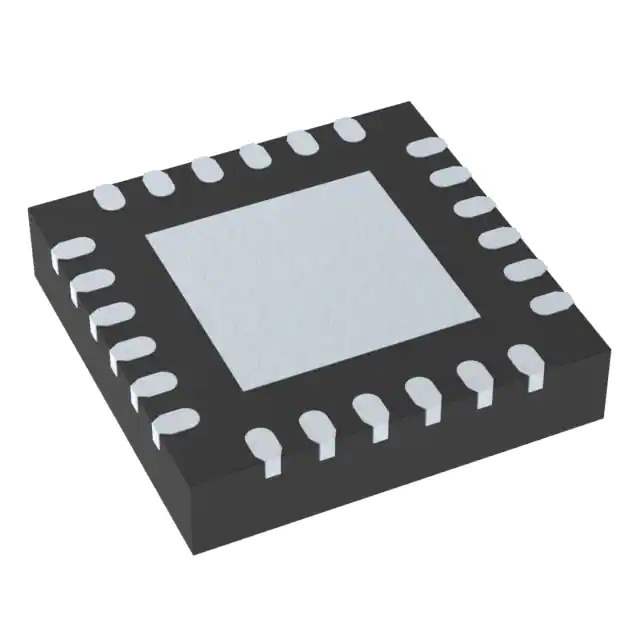

Package / Case 24-VFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Base Product Number CP2102
Standard Package 1,500 pcs
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 852341-CP2102N-A02-GQFN24R
Ultra Librarian 3D Model Ultra Librarian CP2102N-A02-GQFN24R CAD Model

Description

The CP2102N-A02-GQFN24R is a USB interface controller from the USBXpress™ series by Silicon Labs. It serves as a bridge between USB and UART interfaces, allowing easy communication between a computer and other devices.

  • USB Standard: USB 2.0
  • Voltage Supply: 3V to 3.6V
  • Package: 24-VFQFN Exposed Pad
  • Mounting Type: Surface Mount
