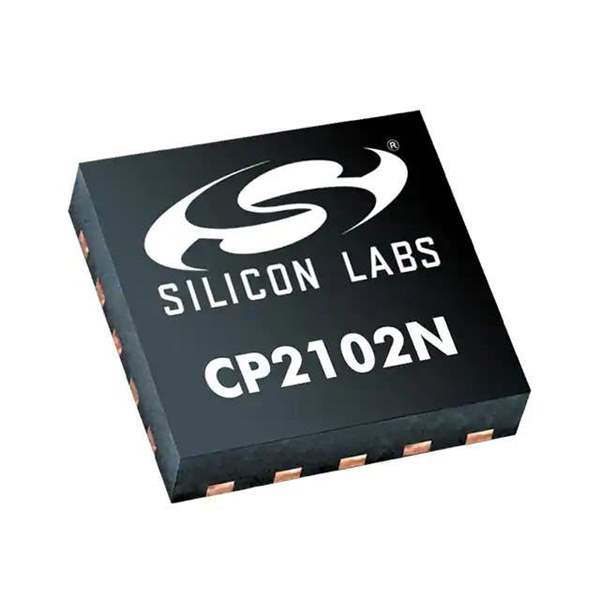

CP2102N-A02-GQFN20 Real Image
Same model may have multiple batches, images only for reference.

CP2102N-A02-GQFN20

Part No CP2102N-A02-GQFN20
Manufacturer Silicon Labs
Catalog Interface - Controllers
Description IC USB TO UART BRIDGE QFN20 / USB Bridge, USB to UART USB 2.0 UART Interface 20-QFN (3x3)
Datasheet
CP2102N-A02-GQFN20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Controllers
Mfr Silicon Labs
Series USBXpress™
Package Tube
Product Status Active
Programmable Not Verified
Protocol USB
Function Bridge, USB to UART
Interface UART
Standards USB 2.0
Voltage - Supply 3V ~ 3.6V
Current - Supply 9.5mA
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case 20-WFQFN Exposed Pad
Supplier Device Package 20-QFN (3x3)
Base Product Number CP2102
Standard Package 120 pcs
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 915693-CP2102N-A02-GQFN20
Ultra Librarian 3D Model Ultra Librarian CP2102N-A02-GQFN20 CAD Model

Description

The CP2102N-A02-GQFN20 is a USB to UART bridge controller designed for interface applications.

  • Voltage Supply Range: 3V to 3.6V
  • Protocol: USB 2.0
  • Current Supply: 9.5mA
  • Package: 20-WFQFN Exposed Pad
  • Mounting: surface mount applications
  • Manufacturer: Silicon Labs
  • Series: USBXpress™ series
