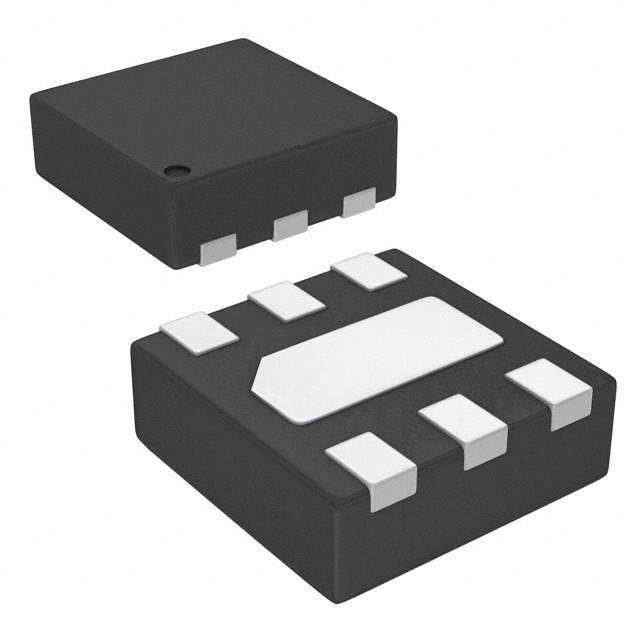

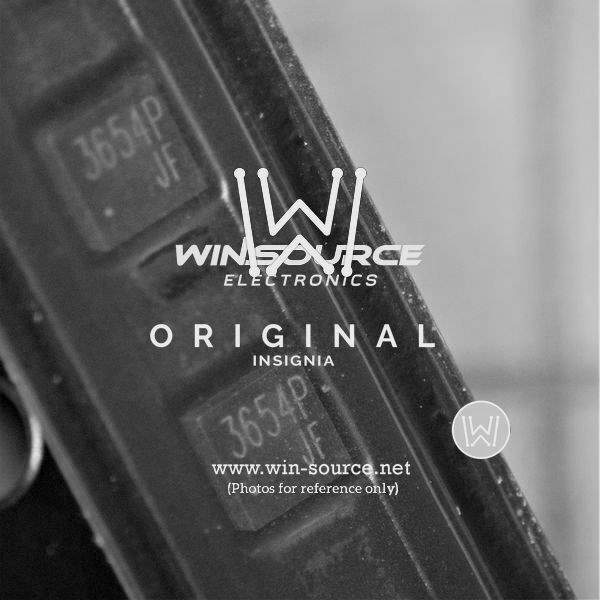

RCLAMP3654P.TCT Semtech Corporation RCLAMP3654P.TCT Real Image RCLAMP3654P.TCT label picture RCLAMP3654P.TCT real image5021 RCLAMP3654P.TCT real image5022
RCLAMP3654P.TCT Semtech Corporation RCLAMP3654P.TCT Real Image RCLAMP3654P.TCT label picture RCLAMP3654P.TCT real image5021 RCLAMP3654P.TCT real image5022
Same model may have multiple batches, images only for reference.

RCLAMP3654P.TCT

Part No RCLAMP3654P.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description ESD Suppressor Diode Diode Array Uni-Dir 28V 6-Pin SLP EP T/R / TVS DIODE 5.5VWM 30VC SLP1616P6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Not For New Designs
Type Steering (Rail to Rail)
Unidirectional Channels 3
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6.5V
Max Clamping Voltage 30V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 100W
Power Line Protection Yes
Applications USB OTG
Capacitance @ Frequency 0.8pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP1616P6 (1.6x1.6)
Win Source Part Number 101280-RCLAMP3654P.TCT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name RCLAMP3654P
Introduction Date July 22, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian RCLAMP3654P.TCT CAD Model

Description

The Semtech Corporation 101280-RCLAMP3654P.TCT is a steering (rail to rail) type circuit protection product that is used in USB OTG applications.

  • Peak Pulse Current: 3A (8/20μs)
  • Maximum Clamping Voltage: 30V
  • Status: Not for new designs
  • Mounting Type: SMD (SMT)
  • Popularity: High
  • Supply and Demand Status: Sufficient
