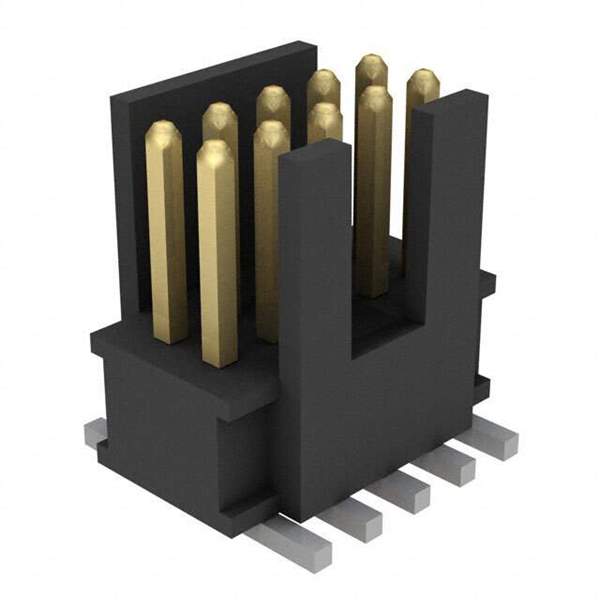

FTSH-105-01-F-DV-K-P-TR Real Image
Same model may have multiple batches, images only for reference.

FTSH-105-01-F-DV-K-P-TR

Part No FTSH-105-01-F-DV-K-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 1.27MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Samtec Inc.
Packaging Reel
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.099" (2.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00μin (0.076μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Shroud, Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812888-FTSH-105-01-F-DV-K-P-TR
Ultra Librarian 3D Model Ultra Librarian FTSH-105-01-F-DV-K-P-TR CAD Model

Description

The Samtec Inc. 812888-FTSH-105-01-F-DV-K-P-TR header connector is a board-to-board or cable type connector with a pitch of 0.050 inches (1.27mm).

  • Pitch: 0.050 inches (1.27mm)
  • Shrouding: Unshrouded
  • Positions: 10
  • Fastening Type: Push-Pull
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Temperature Range: -55°C to 125°C
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Termination: Solder
  • Height: 0.099 inches (2.51mm)
  • Contact Length: 0.120 inches (3.05mm)
  • Current Rating per Contact: 3.4A
  • Packaging: Reel
  • Manufacturer Pack Quantity: 500
